9717 3681000

Obsolete

LUMBERG AUTOMATION

2#14 PVC PARALLEL

Search across all available documentation for this part.

Obsolete

LUMBERG AUTOMATION

2#14 PVC PARALLEL

Technical Specifications

Parameters and characteristics for this part

Specification	9717 3681000

Cable Type	Speaker
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned, Copper, Bare
Jacket (Insulation) Diameter [diameter]	0.292 in
Jacket (Insulation) Diameter [diameter]	7.42 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Transparent
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Usage	Audio
Voltage	300 V
Wire Gauge	13.5 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Conductor Material	Jacket (Insulation) Material	Cable Type	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Conductor Insulation	Number of Conductors	Wire Gauge	Jacket Color
LUMBERG AUTOMATION 9717 3681000	0.292 in	7.42 mm	300 V	Copper Bare Copper Tinned	Poly-Vinyl Chloride (PVC)	Speaker	1000 ft	304.8 m	-20 C	60 °C	Audio	Poly-Vinyl Chloride (PVC)	2	13.5 AWG	Transparent
LUMBERG AUTOMATION 9717 368U1000	0.292 in	7.42 mm	300 V	Copper Bare Copper Tinned	Poly-Vinyl Chloride (PVC)	Speaker	1000 ft	304.8 m	-20 C	60 °C	Audio	Poly-Vinyl Chloride (PVC)	2	13.5 AWG	Transparent

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

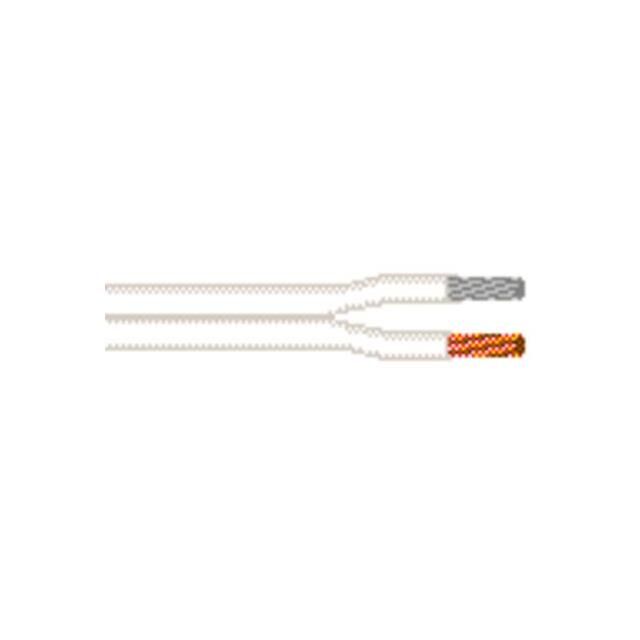

2 Conductor Speaker Cable Transparent 14 AWG 1000.0' (304.8m)
