845-124-525-808
ActiveEDAC Inc.
CONN EDGE DUAL FML 124POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-124-525-808
ActiveEDAC Inc.
CONN EDGE DUAL FML 124POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-124-525-808 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 124 |
| Number of Positions/Bay/Row [custom] | 62 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-124 Series
...
| Part | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Color | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Read Out | Termination | Gender | Number of Positions | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Contact Type | Contact Material | Number of Positions/Bay/Row [custom] | Contact Finish | Mounting Type | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | Solder | Female | 124 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Copper Alloy | 62 | Gold | Through Hole Right Angle | ||||
EDAC Inc. | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | Solder | Female | 124 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 62 | Gold | Through Hole | 3.25 mm | 0.128 in | |||
EDAC Inc. | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | Solder | Female | 124 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | Cantilever | Copper Alloy | 62 | Gold | Through Hole | ||||
EDAC Inc. | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | Solder | Female | 124 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | Cantilever | Copper Alloy | 62 | Gold | Through Hole | ||||
EDAC Inc. | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | Solder | Female | 124 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | Cantilever | Copper Alloy | 62 | Gold | Through Hole | ||||
EDAC Inc. | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | Solder | Female | 124 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | Cantilever | Copper Alloy | 62 | Gold | Through Hole | 3.25 mm | 0.128 in | ||
EDAC Inc. | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | Solder | Female | 124 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 4-40 Threaded Insert Top Mount Opening | Cantilever | Copper Alloy | 62 | Gold | Through Hole | ||||
EDAC Inc. | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | Solder | Female | 124 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | Cantilever | Copper Alloy | 62 | Gold | Through Hole Right Angle | ||||
EDAC Inc. | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | Wire Wrap | Female | 124 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Floating Bobbin Top Mount Opening | Cantilever | Copper Alloy | 62 | Gold | Through Hole | 2.95 mm | 0.116 in | ||
EDAC Inc. | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Dual | Wire Wrap | Female | 124 | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 62 | Gold | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-124 Series

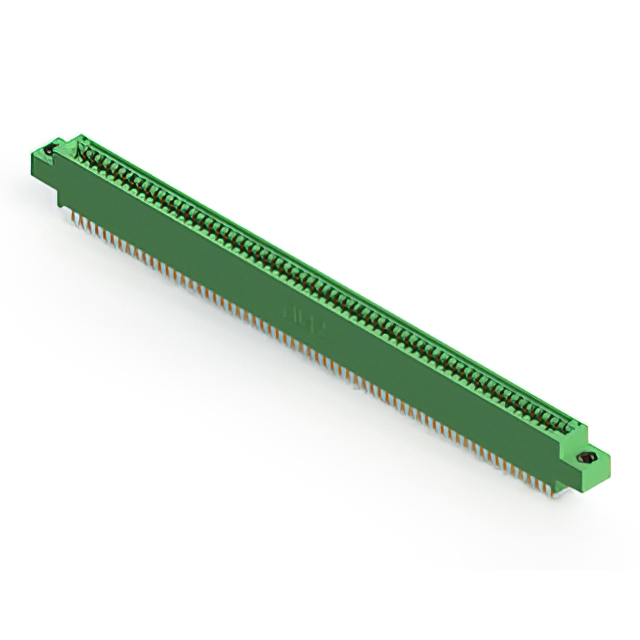

124 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
