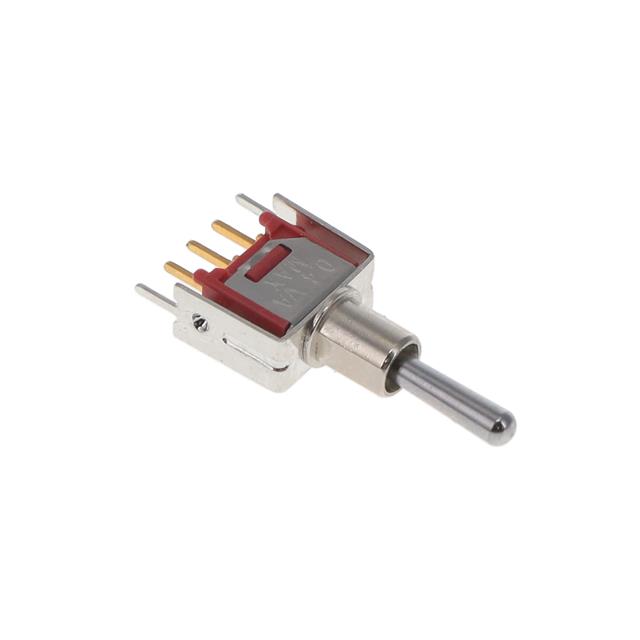

200MSP3T1B2VS2RE

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

200MSP3T1B2VS2RE

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.14
		10	$ 2.80
		25	$ 2.65
		54	$ 2.56
		108	$ 2.44
		270	$ 2.38

Description

General part information

200MSP3 Series

Toggle Switch SPDT Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	200MSP3T1B2VS2RE	200MSP3 Series

Actuator Length	-	6.86 mm
Actuator Length [x]	9.4 mm	5.33 - 11.68 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	1/4-40, Unthreaded, 10-48
Circuit	SPDT	SPDT
Current Rating (Amps)	0.4 VA	0.4 - 3 VA
Electrical Life	30000 Cycles	30000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	Through Hole	Right Angle, Panel Mount, Through Hole, Vertical, Through Hole, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions	-	0.25 - 4.95 in
Switch Function	On-Off-On	On-Off-On
Termination Style	PC Pin	PC Pin, Solder Lug
Voltage Rating - AC	20 V	20 - 120 V
Voltage Rating - DC	20 V	20 - 28 V

200MSP3 Series

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Actuator Length [x]	Switch Function	Voltage Rating - DC	Termination Style	Illumination	Circuit	Voltage Rating - AC	Electrical Life	Current Rating (Amps)	Features	Actuator Type	Panel Cutout Dimensions [diameter]	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Bushing Thread
E-Switch 200MSP3T4B5M6REH	10.41 mm	On-Off-On	20 V	PC Pin	Non-Illuminated	SPDT	20 V	30000 Cycles	0.4 VA	Epoxy Sealed Terminals	Standard Round	0.25 in	Brass, Chrome Plated	-30 ░C	85 °C	Panel Mount, Right Angle	1/4-40
E-Switch 200MSP3T1B2M2QE	9.4 mm	On-Off-On	28 V	PC Pin	Non-Illuminated	SPDT	120 V	30000 Cycles	3 A	Epoxy Sealed Terminals	Standard Round		Brass, Chrome Plated	-30 ░C	85 °C	Through Hole	Unthreaded
E-Switch 200MSP3T2B1M7QEH	5.33 mm	On-Off-On	28 V	PC Pin	Non-Illuminated	SPDT	120 V	30000 Cycles	3 A	Epoxy Sealed Terminals	Standard Round	4.95 mm	Brass, Chrome Plated	-30 ░C	85 °C	Panel Mount, Right Angle, Vertical	10-48
E-Switch 200MSP3T2B1M1QEH	5.33 mm	On-Off-On	28 V	Solder Lug	Non-Illuminated	SPDT	120 V	30000 Cycles	3 A	Epoxy Sealed Terminals	Standard Round	4.95 mm	Brass, Chrome Plated	-30 ░C	85 °C		10-48
E-Switch 200MSP3T1B2VS2RE	9.4 mm	On-Off-On	20 V	PC Pin	Non-Illuminated	SPDT	20 V	30000 Cycles	0.4 VA	Epoxy Sealed Terminals	Standard Round		Brass, Chrome Plated	-30 ░C	85 °C	Through Hole	Unthreaded
E-Switch 200MSP3T2B3M7QE	5.33 mm	On-Off-On	28 V	PC Pin	Non-Illuminated	SPDT	120 V	30000 Cycles	3 A	Epoxy Sealed Terminals	Standard Round	4.95 mm	Brass, Chrome Plated	-30 ░C	85 °C	Panel Mount, Right Angle, Vertical	10-48
E-Switch 200MSP3T1B1M2RE	9.4 mm	On-Off-On	20 V	PC Pin	Non-Illuminated	SPDT	20 V	30000 Cycles	0.4 VA	Epoxy Sealed Terminals	Standard Round	4.95 mm	Brass, Chrome Plated	-30 ░C	85 °C		10-48
E-Switch 200MSP3T1B2M6RE	9.4 mm	On-Off-On	20 V	PC Pin	Non-Illuminated	SPDT	20 V	30000 Cycles	0.4 VA	Epoxy Sealed Terminals	Standard Round		Brass, Chrome Plated	-30 ░C	85 °C	Through Hole, Right Angle	Unthreaded
E-Switch 200MSP3T1B5M1QE	9.4 mm	On-Off-On	28 V	Solder Lug	Non-Illuminated	SPDT	120 V	30000 Cycles	3 A	Epoxy Sealed Terminals	Standard Round	0.25 in	Brass, Chrome Plated	-30 ░C	85 °C		1/4-40
E-Switch 200MSP3T2B1M6REH	5.33 mm	On-Off-On	20 V	PC Pin	Non-Illuminated	SPDT	20 V	30000 Cycles	0.4 VA	Epoxy Sealed Terminals	Standard Round	4.95 mm	Brass, Chrome Plated	-30 ░C	85 °C	Panel Mount, Right Angle	10-48
