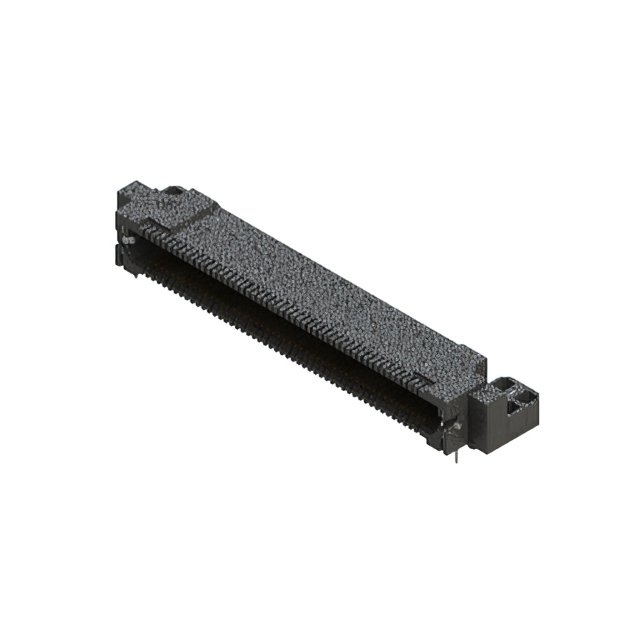

473-100-571-002

Active

EDAC Inc.

CONN DIFF ARRAY RCP 100P R/A SMD

Search across all available documentation for this part.

Active

EDAC Inc.

CONN DIFF ARRAY RCP 100P R/A SMD

Technical Specifications

Parameters and characteristics for this part

Specification	473-100-571-002

Connector Type	Differential Pair Array, Female
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Board Guide, Flange
Height Above Board [z]	0.254 in
Height Above Board [z]	6.45 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions	100
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Features	Connector Type	Pitch [x]	Pitch [x]	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish	Mounting Type	Height Above Board [z]	Height Above Board [z]
EDAC Inc. 473-100-571-002	Board Guide Flange	Differential Pair Array Female	0.8 mm	0.031 in	100	2	Flash	Gold	Surface Mount Right Angle	0.254 in	6.45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1200	$ 10.02

General part information

100 Position Connector Differential Pair Array, Female Surface Mount, Right Angle Gold
