EK-U1-VCU118-G

Active

AMD

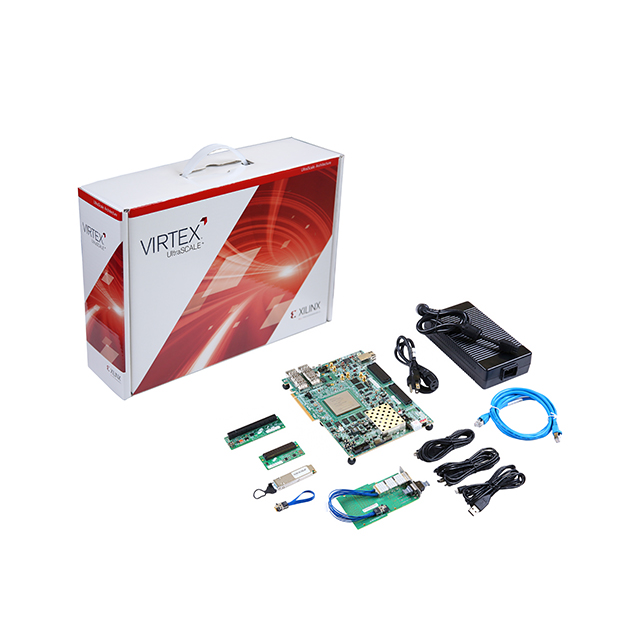

FPGA VCU118-G EVALUATION KIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EK-U1-VCU118-G

Active

AMD

FPGA VCU118-G EVALUATION KIT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EK-U1-VCU118-G

Contents	Cable(s), Board(s), Power Supply
For Use With/Related Products	XCVU9P
Interconnect System	Pmod, FMC+, FMC
Platform	Virtex UltraScale+ FPGA VCU118 PCIe Card
Suggested Programming Environment	Vivado
Utilized IC / Part	XCVU9P

XCVU9 Series

Part	Number of Logic Elements/Cells	Number of LABs/CLBs	Total RAM Bits	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of I/O	Package / Case	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Platform	Contents	For Use With/Related Products	Interconnect System	Utilized IC / Part	Suggested Programming Environment	Note
AMD XCVU9P-1FLGA2104I	2586150	147780	391168000 Bits	100 °C	-40 C	Surface Mount	0.825 V	0.876 V	832 I/O	2104-BBGA FCBGA	47.5	47.5	2104-FCBGA
AMD XCVU9P-L2FLGB2104E	2586150	147780	391168000 Bits	110 °C	0 °C	Surface Mount	0.698 V	0.742 V	702	2104-BBGA FCBGA	47.5	47.5	2104-FCBGA
AMD XCVU9P-3FLGB2104E	2586150	147780	391168000 Bits	100 °C	0 °C	Surface Mount	0.873 V	0.927 V	702	2104-BBGA FCBGA	47.5	47.5	2104-FCBGA
AMD EK-U1-VCU118-G														Virtex UltraScale+ FPGA VCU118 PCIe Card	Board(s) Cable(s) Power Supply	XCVU9P	FMC FMC+ Pmod	XCVU9P	Vivado
AMD XCVU9P-2FLGA2577E	2586150	147780	391168000 Bits	100 °C	0 °C	Surface Mount	0.825 V	0.876 V	448 I/O	2577-BBGA FCBGA			2577-FCBGA (52.5x52.5)
AMD XCVU9P-1FLGB2104I	2586150	147780	391168000 Bits	100 °C	-40 C	Surface Mount	0.825 V	0.876 V	702	2104-BBGA FCBGA	47.5	47.5	2104-FCBGA
AMD EK-U1-VCU118-G-J														Virtex UltraScale+ FPGA VCU118 Japan PCIe Card	Board(s) Cable(s)	XCVU9P	FMC FMC+ Pmod	XCVU9P	Vivado	J = Japan version does not ship with a power supply
AMD XCVU9P-L2FLGC2104E	2586150	147780	391168000 Bits	110 °C	0 °C	Surface Mount	0.698 V	0.742 V	416	2104-BBGA FCBGA	47.5	47.5	2104-FCBGA
AMD EK-U1-VCU118-ES1-G-J														Virtex UltraScale+ FPGA VCU118 ES1 Japan PCIe Card	Board(s) Cable(s)	XCVU9P	FMC FMC+ Pmod	XCVU9P	Vivado	J = Japan version does not ship with a power supply
AMD XCVU9P-2FLGB2104E	2586150	147780	391168000 Bits	100 °C	0 °C	Surface Mount	0.825 V	0.876 V	702	2104-BBGA FCBGA	47.5	47.5	2104-FCBGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10008.00

Description

General part information

XCVU9 Series

Virtex UltraScale+ FPGA VCU118 PCIe Card XCVU9P Virtex® UltraScale+™ FPGA Evaluation Board

Documents

Technical documentation and resources
