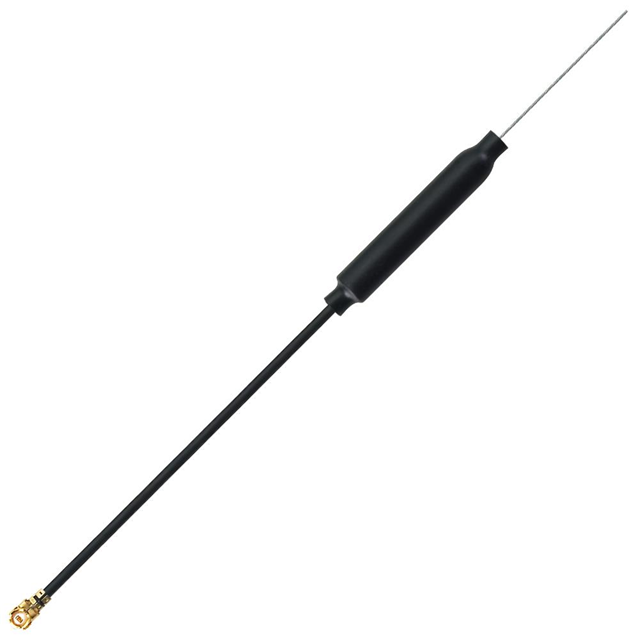

CBD01.07.0100C

Active

TAOGLAS

RF ANT 4.9GHZ WHIP STR CONN MT

Search across all available documentation for this part.

Active

TAOGLAS

RF ANT 4.9GHZ WHIP STR CONN MT

Technical Specifications

Parameters and characteristics for this part

RF ANT 4.9GHZ WHIP STR CONN MT

Part	Height (Max) [Max]	Height (Max)	Frequency Group	Applications	Return Loss	Frequency (Center/Band)	Gain	Number of Bands	VSWR	Frequency Range [Max]	Frequency Range [Min]	Termination	Power - Max [Max]	Antenna Type	Features	Features	Mounting Type
TAOGLAS CBD01.07.0100C	0.185 "	4.7 mm	SHF	ISM, Wi-Fi	-10 dB	4.9 GHz	3.24 dBi	1	2	2.5 GHz	2.4 GHz	I-PEX MHF1, U.FL (UMCC)	2 W	Whip, Straight	Cable	100 mm	Connector Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA ISM, Wi-Fi Whip, Straight U.FL (UMCC), I-PEX MHF1 Connector Mount
