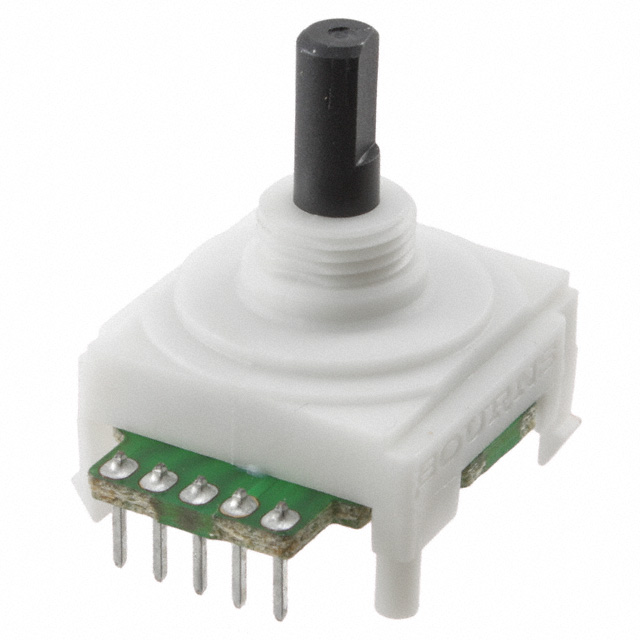

EPS1D-F19-BD0024L
ActiveBourns Inc.
ENCODER-DIGITAL CONTACTING /TRAY PACKAGING ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPS1D-F19-BD0024L
ActiveBourns Inc.
ENCODER-DIGITAL CONTACTING /TRAY PACKAGING ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EPS1D-F19-BD0024L |
|---|---|
| Actuator Type | Flatted End |
| Actuator Type [diameter] | 4.8 mm |
| Built in Switch | True |
| Detent | True |
| Encoder Type | Mechanical |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 24 per Revolution |
| Rotational Life (Cycles Min) | 200K |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EPS1D Series
Rotary Encoder Mechanical 24 Quadrature (Incremental) Vertical
