AXF5A2012

Active

Panasonic Electric Works

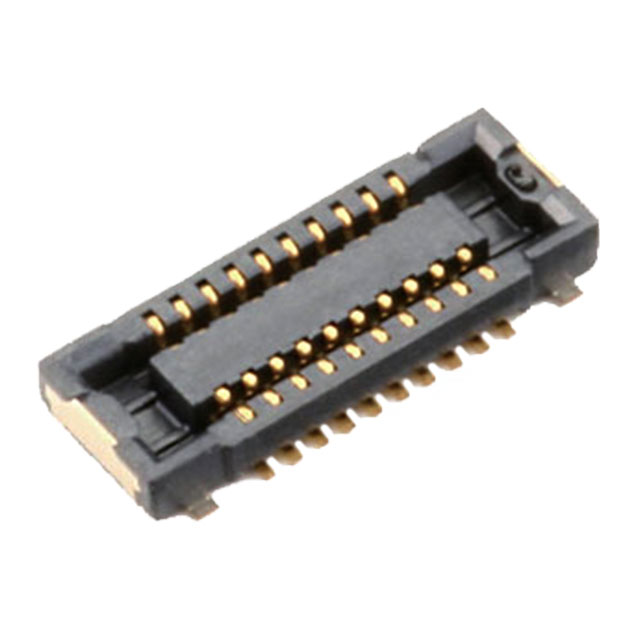

CONN SOCKET 20POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXF5A2012

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Number of Positions	Features	Contact Finish	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Connector Type	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]
Panasonic Electric Works AXF5A2012	20	Solder Retention	Gold	0.03 in	0.75 mm	0.8 mm	Socket Center Strip Contacts	Surface Mount	2	0.35 mm	0.014 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.55

General part information

20 Position Connector Socket, Center Strip Contacts Surface Mount Gold
