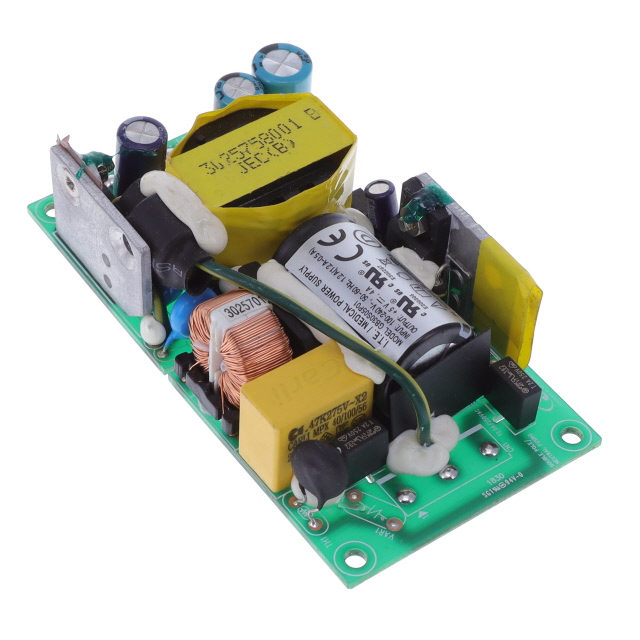

GB30S05P01

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 5V 20W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 5V 20W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC POWER SUPPLY SINGLE-OUT 5V 4A 20W 7-PIN

Part	Minimum Load Required	Voltage - Output 1	Type	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage - Isolation	Efficiency	Current - Output 1	Mounting Type	Power (Watts)	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Number of Outputs	Standard Number	Size / Dimension [y]	Size / Dimension [z]
SL POWER / Advanced Energy GB30S05K01		5 V	Open Frame	240 VAC	100 VAC	-25 °C	70 °C	CE, cURus, UL	4000 V	88 %	4 A	Chassis Mount	20 W	ITE (Commercial), Medical	101.6 mm	25.4 mm	1 "	4 in	48.26 mm	48.3 mm	Universal Input	1
SL POWER / Advanced Energy GB30S05P01		5 V	Open Frame	264 VAC	90 VAC	-25 °C	70 °C	CE, cURus, DEMKO	4000 V	88 %	4 A	Chassis Mount	20 W	ITE (Commercial), Medical	91.9 mm		0.82 in	3.62 in	1.89 in		Universal Input	1	60601-1, 62368-1	48 mm	20.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 5V 90 ~ 264 VAC Input
