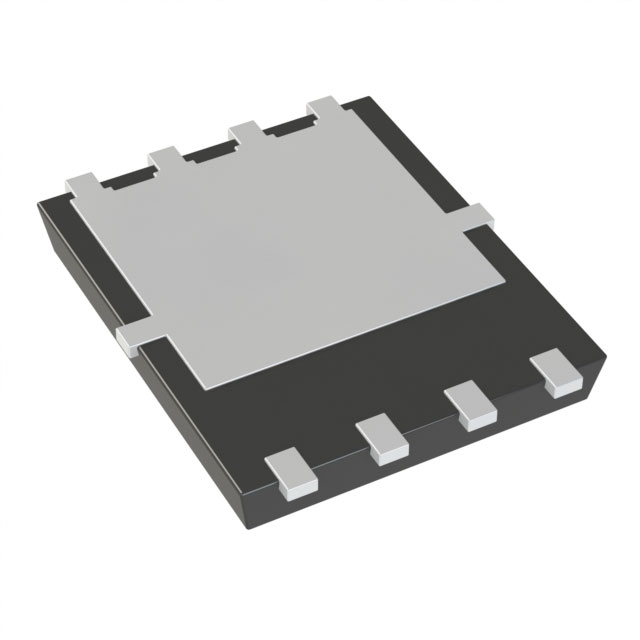

AONS32304

Active

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 30V 40A/140A 8DFN

Search across all available documentation for this part.

Active

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 30V 40A/140A 8DFN

Technical Specifications

Parameters and characteristics for this part

Specification	AONS32304

Current - Continuous Drain (Id) @ 25°C	40 A, 140 A
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	130 nC
Input Capacitance (Ciss) (Max) @ Vds	5970 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerSMD, Flat Leads
Power Dissipation (Max)	6.2 W, 78 W
Rds On (Max) @ Id, Vgs	2.3 mOhm
Supplier Device Package	8-DFN (5x6)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2.1 V

Part	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Vgs (Max)	Vgs(th) (Max) @ Id	Mounting Type	Rds On (Max) @ Id, Vgs	Package / Case	Power Dissipation (Max)	Supplier Device Package	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	FET Type	Power Dissipation (Max) [Max]	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs [Max]
Alpha & Omega Semiconductor Inc. AONS32304	MOSFET (Metal Oxide)	-55 °C	150 °C	130 nC	20 V	2.1 V	Surface Mount	2.3 mOhm	8-PowerSMD Flat Leads	6.2 W 78 W	8-DFN (5x6)	30 V	4.5 V 10 V	40 A 140 A	5970 pF	N-Channel
Alpha & Omega Semiconductor Inc. AONS32310	MOSFET (Metal Oxide)	-55 °C	150 °C	240 nC	20 V	1.8 V	Surface Mount	1.05 mOhm	8-PowerSMD Flat Leads	6.2 W 400 W	8-DFN (5x6)	30 V	4.5 V 10 V		15350 pF	N-Channel
Alpha & Omega Semiconductor Inc. AONS32302	MOSFET (Metal Oxide)	-55 °C	150 °C		20 V	2.3 V	Surface Mount		8-PowerSMD Flat Leads		8-DFN (5x6)	30 V	4.5 V 10 V	56 A 220 A	6060 pF	N-Channel	119 W	150 nC	1.35 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 30 V 40A (Ta), 140A (Tc) 6.2W (Ta), 78W (Tc) Surface Mount 8-DFN (5x6)
