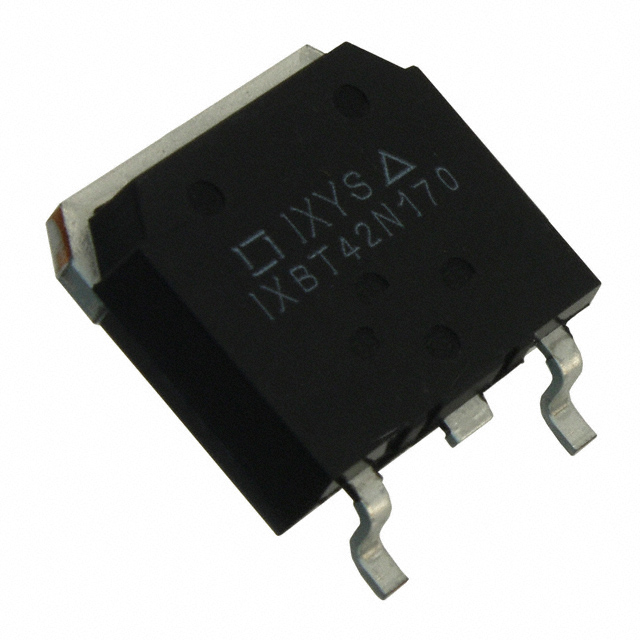

IXBT42N170

Active

IXYS

IGBT 1700V 80A TO268AA

Search across all available documentation for this part.

Active

IXYS

IGBT 1700V 80A TO268AA

Technical Specifications

Parameters and characteristics for this part

Specification	IXBT42N170

Current - Collector (Ic) (Max) [Max]	80 A
Current - Collector Pulsed (Icm)	300 A
Gate Charge	188 nC
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	D3PAK (2 Leads + Tab), TO-268AA, TO-268-3
Reverse Recovery Time (trr)	1.32 µs
Supplier Device Package	TO-268AA
Vce(on) (Max) @ Vge, Ic	2.8 V
Voltage - Collector Emitter Breakdown (Max)	1700 V

Part	Td (on/off) @ 25°C	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Current - Collector Pulsed (Icm)	Package / Case	Reverse Recovery Time (trr)	Test Condition	Gate Charge	Current - Collector (Ic) (Max) [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max)
IXYS IXBT42N300HV	72 ns 445 ns	-55 °C	150 °C	500 W	3 V	TO-268HV	400 A	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	1.7 µs	15 V 20 Ohm 42 A 1500 V	200 nC	104 A	Surface Mount
IXYS IXBT42N170		-55 °C	150 °C		2.8 V	TO-268AA	300 A	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	1.32 µs		188 nC	80 A	Surface Mount	1700 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT 1700 V 80 A 360 W Surface Mount TO-268AA
