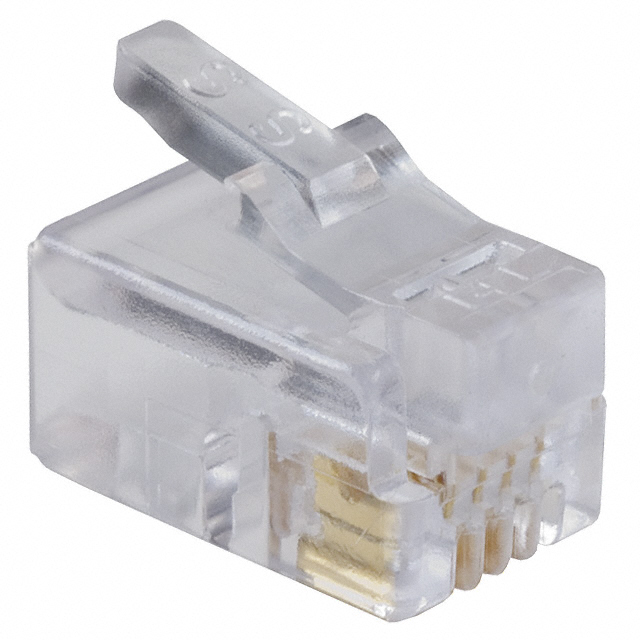

940-SP-3044

Active

BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ11 PLUG, 1 X 1 (PORT), 4P4C, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAssembly Instructions EN

940-SP-3044

Active

BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ11 PLUG, 1 X 1 (PORT), 4P4C, CABLE MOUNT

Deep-Dive with AI

DocumentsAssembly Instructions EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	940-SP-3044

Cable Type	Flat Oval Cable, Solid or Stranded Wires
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Current Rating (Amps)	1.5 A
Housing Material	Polycarbonate (PC)
Length	13.34 mm
Length	0.525 in
Number of Positions/Contacts	4p4c
Shielding	Unshielded
Termination	IDC
Voltage Rating	150 VDC

940-SP-30 Series

Part	Shielding	Connector Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Color	Cable Type	Current Rating (Amps)	Length	Length	Termination	Contact Material	Contact Finish	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Housing Material	Number of Positions/Contacts	Features	Length	Ratings	Wire Gauge [Min]	Wire Gauge [Max]
BEL MAGNETIC SOLUTIONS 940-SP-301010R	Unshielded	Plug	10	10	Translucent - Clear	Round Cable Solid Stranded Wires	1.5 A	22.48 mm	0.885 in	IDC	Phosphor Bronze	Gold	150 VDC	50 µin	1.27 µm	Polycarbonate (PC)
BEL MAGNETIC SOLUTIONS 940-SP-3088R-A286	Unshielded	Plug			Translucent - Clear	Round Cable Solid Stranded Wires	1.5 A	22.48 mm	0.885 in	IDC	Phosphor Bronze	Gold	150 VDC	50 µin	1.27 µm	Polycarbonate (PC)	8p8c (RJ45 Ethernet)	Keyed
BEL MAGNETIC SOLUTIONS 940-SP-3088R-A133	Unshielded	Plug			Translucent - Clear	Round Cable Solid Stranded Wires	1.5 A	22.48 mm	0.885 in	IDC	Phosphor Bronze	Gold	150 VDC	50 µin	1.27 µm	Polycarbonate (PC)	8p8c (RJ45 Ethernet)
BEL MAGNETIC SOLUTIONS 940-SP-3088	Unshielded	Plug			Translucent - Clear	Flat Oval Cable Solid or Stranded Wires	1.5 A	22.48 mm	0.885 in	IDC	Phosphor Bronze	Gold	150 VDC	50 µin	1.27 µm	Polycarbonate (PC)	8p8c (RJ45 Ethernet)
BEL MAGNETIC SOLUTIONS 940-SP-3044	Unshielded	Plug			Translucent - Clear	Flat Oval Cable Solid or Stranded Wires	1.5 A		13.34 mm	IDC	Phosphor Bronze	Gold	150 VDC	50 µin	1.27 µm	Polycarbonate (PC)	4p4c		0.525 in
BEL MAGNETIC SOLUTIONS 940-SP-3088R	Unshielded	Plug			Translucent - Clear	Round Cable Solid Stranded Wires	1.5 A	22.48 mm	0.885 in	IDC	Phosphor Bronze	Gold	150 VDC	50 µin	1.27 µm	Polycarbonate (PC)	8p8c (RJ45 Ethernet)
BEL MAGNETIC SOLUTIONS 940-SP-3046-B25	Unshielded	Plug			Translucent - Clear	Flat Oval Cable Solid or Stranded Wires	1.5 A		13.34 mm	IDC	Phosphor Bronze	Gold	150 VDC	50 µin	1.27 µm	Polycarbonate (PC)	6p4c		0.525 in	Cat5	24 AWG	28 AWG
BEL MAGNETIC SOLUTIONS 940-SP-3066	Unshielded	Plug			Translucent - Clear	Flat Oval Cable Solid or Stranded Wires	1.5 A		13.34 mm	IDC	Phosphor Bronze	Gold	150 VDC	50 µin	1.27 µm	Polycarbonate (PC)	6p6c (RJ11 RJ12 RJ14 RJ25)		0.525 in
BEL MAGNETIC SOLUTIONS 940-SP-3066R-OST	Unshielded	Plug			Translucent - Clear	Round Cable Solid Stranded Wires	1.5 A		13.34 mm	IDC	Phosphor Bronze	Gold	150 VDC	50 µin	1.27 µm	Polycarbonate (PC)	6p6c (RJ11 RJ12 RJ14 RJ25)		0.525 in
BEL MAGNETIC SOLUTIONS 940-SP-3046R	Unshielded	Plug			Translucent - Clear	Round Cable Solid Stranded Wires	1.5 A		13.34 mm	IDC	Phosphor Bronze	Gold	150 VDC	50 µin	1.27 µm	Polycarbonate (PC)	6p4c		0.525 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.34
		10	$ 0.29
		100	$ 0.23
		1000	$ 0.16
		8000	$ 0.13
		16000	$ 0.13
Newark	Each	1	$ 0.37
		10	$ 0.34
		25	$ 0.30
		50	$ 0.26
		100	$ 0.24
		250	$ 0.21
		500	$ 0.20
		1000	$ 0.17

Description

General part information

940-SP-30 Series

MODULAR CONNECTOR, RJ11 PLUG, 1 X 1 (PORT), 4P4C, CABLE MOUNT

Documents

Technical documentation and resources

Assembly Instructions EN

Datasheet
