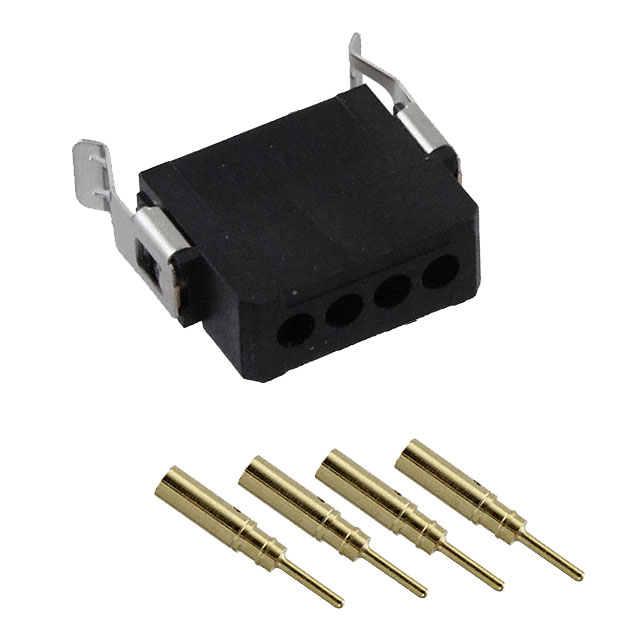

M80-8080405

Active

Harwin Inc.

4 POS. MALE SIL 24-28AWG CABLE CONN. KIT, LATCHES ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

4 POS. MALE SIL 24-28AWG CABLE CONN. KIT, LATCHES ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Mounting Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Positions	Wire Type	Connector Type	Cable Termination	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Fastening Type
Harwin Inc. M80-8080705	1	Free Hanging (In-Line)	Male Pin	10 Áin	0.25 Ám	0.079 in	2 mm	7	Discrete	Plug	Crimp	Gold	24 AWG	28 AWG	Latch Holder
Harwin Inc. M80-8080405	1	Free Hanging (In-Line)	Male Pin	10 Áin	0.25 Ám	0.079 in	2 mm	4	Discrete	Plug	Crimp	Gold	24 AWG	28 AWG	Latch Holder
Harwin Inc. M80-8080205	1	Free Hanging (In-Line)	Male Pin	10 Áin	0.25 Ám	0.079 in	2 mm	2	Discrete	Plug	Crimp	Gold	24 AWG	28 AWG	Friction Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Rectangular Plug Connector Crimp Gold 24-28 AWG
