SJS840310

Active

AMPHENOL PCD

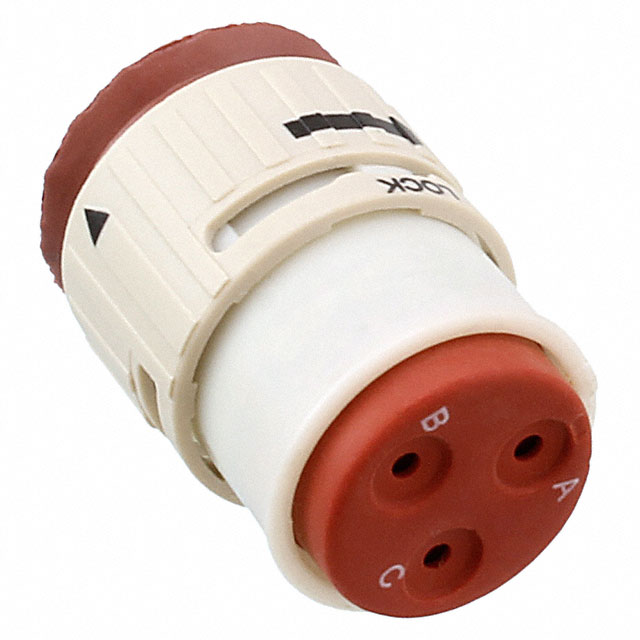

CONN PLUG HSG FMALE 3POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

SJS840310

Active

AMPHENOL PCD

CONN PLUG HSG FMALE 3POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.50
		10	$ 29.34
		100	$ 26.26

Description

General part information

SJS84 Series

3 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut, Dust Cap

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SJS840310	SJS84 Series

Connector Type	Plug Housing	Receptacle Housing, Plug Housing, Receptacle, Male Pins
Contact Finish - Mating	-	Gold
Contact Shape	Circular	Circular
Contact Size	16	16
Contact Type	Crimp	Crimp
Current Rating (Amps)	-	13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Dust Cap, Coupling Nut	Dust Cap, Coupling Nut
Housing Color	White	Black, White
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof, Environment Sealed
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	-	Flange
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	-	4
Operating Temperature [Max]	155 °C	125 - 155 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	A	B, A
Primary Material	-	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	8	8
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Type	For Female Sockets	For Male Pins, For Female Sockets

SJS84 Series

CONN RCPT HSNG MALE 3POS INLINE

Part	Features	Type	Housing Color	Shell Size - Insert	Shell Material	Note	Ingress Protection	Mounting Type	Shielding	Material Flammability Rating	Contact Size	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Orientation	Contact Shape	Connector Type	Number of Positions	Mounting Feature	Termination	Current Rating (Amps)	Primary Material	Contact Finish - Mating
AMPHENOL PCD SJS840350	Dust Cap	For Male Pins	Black	8	Polyamide (PA66), Nylon 6/6	Contacts Not Included	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Unshielded	UL94 V-0	16	Bayonet Lock	155 °C	-65 ░C	Crimp	B	Circular	Receptacle Housing
AMPHENOL PCD SJS840310	Coupling Nut, Dust Cap	For Female Sockets	White	8	Polyamide (PA66), Nylon 6/6	Contacts Not Included	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Unshielded	UL94 V-0	16	Bayonet Lock	155 °C	-65 ░C	Crimp	A	Circular	Plug Housing
AMPHENOL PCD SJS840400	Dust Cap	For Male Pins	White	8	Polyamide (PA66), Nylon 6/6	Contacts Not Included	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Unshielded	UL94 V-0	16	Bayonet Lock	155 °C	-65 ░C	Crimp	A	Circular	Receptacle Housing	4
AMPHENOL PCD SJS840320	Dust Cap	For Male Pins	White	8	Polyamide (PA66), Nylon 6/6	Contacts Not Included	IP67 - Dust Tight, Waterproof		Unshielded	UL94 V-0	16	Bayonet Lock	155 °C	-65 ░C	Crimp	A	Circular	Receptacle Housing		Flange
AMPHENOL PCD SJS840301				8	Polyamide (PA66), Nylon 6/6		Environment Sealed	Free Hanging (In-Line)				Bayonet Lock	125 °C	-65 ░C				Male Pins, Receptacle			Crimp	13 A	Plastic	Gold
AMPHENOL PCD SJS840410	Coupling Nut, Dust Cap	For Female Sockets	White	8	Polyamide (PA66), Nylon 6/6	Contacts Not Included	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Unshielded	UL94 V-0	16	Bayonet Lock	155 °C	-65 ░C	Crimp	A	Circular	Plug Housing	4
AMPHENOL PCD SJS840300	Dust Cap	For Male Pins	White	8	Polyamide (PA66), Nylon 6/6	Contacts Not Included	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Unshielded	UL94 V-0	16	Bayonet Lock	155 °C	-65 ░C	Crimp	A	Circular	Receptacle Housing
AMPHENOL PCD SJS840330	Dust Cap	For Male Pins	Black	8	Polyamide (PA66), Nylon 6/6	Contacts Not Included	IP67 - Dust Tight, Waterproof		Unshielded	UL94 V-0	16	Bayonet Lock	155 °C	-65 ░C	Crimp	B	Circular	Receptacle Housing		Flange
