RCBS1901417LG1
ActiveHammond Manufacturing

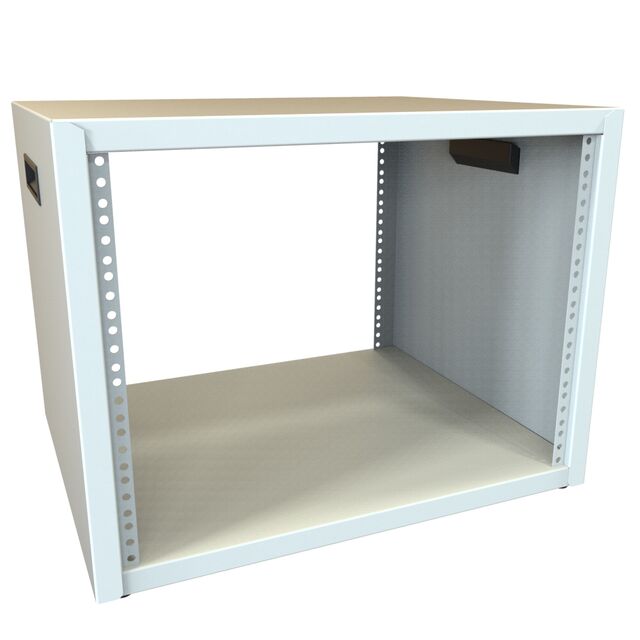

LIGHT GRAY STEEL RACK MOUNT CABINET
Deep-Dive with AI
Search across all available documentation for this part.
RCBS1901417LG1
ActiveHammond Manufacturing
LIGHT GRAY STEEL RACK MOUNT CABINET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RCBS1901417LG1 |
|---|---|
| Color | Gray |
| Dimensions - Overall [x] | 17.5 in |
| Dimensions - Overall [x] | 444.5 mm |
| Dimensions - Overall [y] | 533.4 mm |
| Dimensions - Overall [y] | 21 in |
| Dimensions - Overall [z] | 406.4 mm |
| Dimensions - Overall [z] | 16 in |
| Dimensions - Panel [x] | 444.5 mm |
| Dimensions - Panel [x] | 17.5 " |
| Dimensions - Panel [y] | 452.37 mm |
| Dimensions - Panel [y] | 17.81 in |
| Dimensions - Panel [z] | 14.03 " |
| Dimensions - Panel [z] | 356.36 mm |
| Door | Doorless |
| Features | Handles |
| Material | Metal, Steel |
| Mounting Rails | Two Pair |
| Number of Units | 8U |
| Style | Top, Bottom, Enclosed, Sides |
| Type | Table Top Rack Cabinet |
| Ventilation | Non-Vented |
| Weight | 30 lbs |
| Weight | 13.6 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RCBS1901417 Series
Metal, Steel Table Top Rack Cabinet Enclosed, Bottom, Sides, Top 17.500" L x 21.000" W x 16.000" H (444.50mm x 533.40mm x 406.40mm) Gray
Documents
Technical documentation and resources
