L717SDE09POL2C309

Active

Amphenol ICC (Commercial Products)

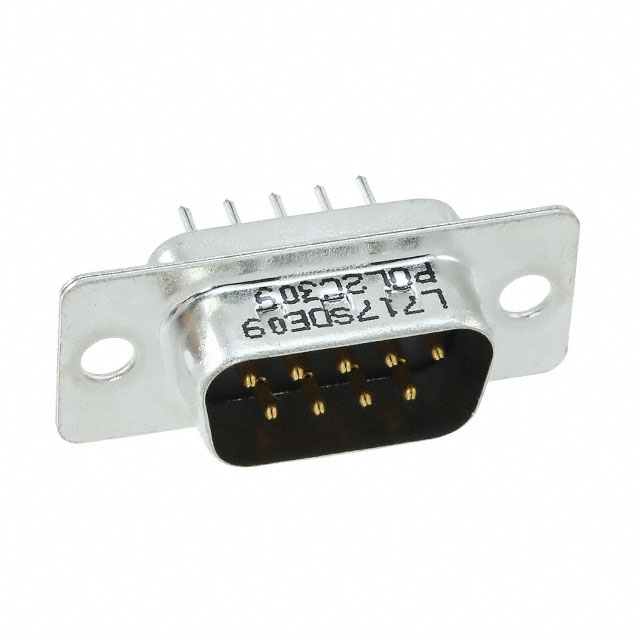

CONN D-SUB PLUG 9POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717SDE09POL2C309

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717SDE09POL2C309

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	250 VDC

L717SDE09 Series

Part	Material Flammability Rating	Contact Material	Color	Flange Feature	Mounting Type	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Contact Type	Current Rating (Amps)	Number of Rows	Voltage Rating	Connector Style	Contact Finish	Backset Spacing	Backset Spacing	Contact Form	Features	Dielectric Material	Termination	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge
Amphenol ICC (Commercial Products) L717SDE09P1ACH4R	UL94 V-0	Brass	Black	4-40 Board Side	Through Hole Right Angle	Flash	DE E	1	-55 °C	125 °C	Male Pins Plug	9	Signal	3 A	2	250 VDC	D-Sub	Gold	0.406 in	10.3 mm	Stamped	Board Lock Grounding Indents	Thermoplastic Glass Filled	Solder
Amphenol ICC (Commercial Products) L717SDE09POL2C309	UL94 V-0	Brass	Black	Housing/Shell (Unthreaded)	Through Hole		DE E	1	-55 °C	125 °C	Male Pins Plug	9	Signal	3 A	2	250 VDC	D-Sub	Gold			Stamped	Grounding Indents	Thermoplastic Glass Filled	Solder	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDE09PABCO4R	UL94 V-0	Brass	Black	4-40 Board Side	Through Hole Right Angle	Flash	DE E	1	-55 °C	125 °C	Male Pins Plug	9	Signal	3 A	2	250 VDC	D-Sub	Gold			Stamped	Grounding Indents	Thermoplastic Glass Filled	Solder
Amphenol ICC (Commercial Products) L717SDE09PABCH3RC309	UL94 V-0	Brass	Black	Board Side (M3)	Through Hole Right Angle		DE E	1	-55 °C	125 °C	Male Pins Plug	9	Signal	3 A	2	250 VDC	D-Sub	Gold	0.59 "	14.99 mm	Stamped	Board Lock Grounding Indents	Thermoplastic Glass Filled	Solder	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDE09PA4CH3FC309	UL94 V-0	Brass	Black	Female Screwlock (M3) Mating Side	Through Hole Right Angle		DE E	1	-55 °C	125 °C	Male Pins Plug	9	Signal	3 A	2	250 VDC	D-Sub	Gold	0.318 "	8.08 mm	Stamped	Board Lock Grounding Indents	Thermoplastic Glass Filled	Solder	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDE09PA4CH4FC309	UL94 V-0	Brass	Black	Female Screwlock (4-40) Mating Side	Through Hole Right Angle		DE E	1	-55 °C	125 °C	Male Pins Plug	9	Signal	3 A	2	250 VDC	D-Sub	Gold	0.318 "	8.08 mm	Stamped	Board Lock Grounding Indents	Thermoplastic Glass Filled	Solder	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDE09PVFM	UL94 V-0	Brass	Black	Female Screwlock (M3) Mating Side	Free Hanging (In-Line)	Flash	DE E	1	-55 °C	105 ░C	Male Pins Plug	9	Signal	3 A	2	250 VDC	D-Sub	Gold			Stamped	Grounding Indents	Thermoplastic Glass Filled				20 AWG
Amphenol ICC (Commercial Products) L717SDE09PVFMC309	UL94 V-0	Brass	Black	Female Screwlock (M3) Mating Side	Free Hanging (In-Line)		DE E	1	-55 °C	105 ░C	Male Pins Plug	9	Signal	3 A	2	250 VDC	D-Sub	Gold			Stamped	Grounding Indents	Thermoplastic Glass Filled		0.76 Ám	30 Áin	20 AWG
Amphenol ICC (Commercial Products) L717SDE09POL2G	UL94 V-0	Brass	Black	Housing/Shell (Unthreaded)	Through Hole	Flash	DE E	1	-55 °C	125 °C	Male Pins Plug	9	Signal	3 A	2	250 VDC	D-Sub	Gold			Stamped	Grounding Indents	Thermoplastic Glass Filled	Solder
Amphenol ICC (Commercial Products) L717SDE09P1ACH3F	UL94 V-0	Brass	Black	Female Screwlock (M3) Mating Side	Through Hole Right Angle	Flash	DE E	1	-55 °C	125 °C	Male Pins Plug	9	Signal	3 A	2	250 VDC	D-Sub	Gold	0.406 in	10.3 mm	Stamped	Board Lock Grounding Indents	Thermoplastic Glass Filled	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.63
		10	$ 1.42
		25	$ 1.35
		50	$ 1.32
		100	$ 1.26
		250	$ 1.14
		450	$ 1.05
		950	$ 0.90
		2400	$ 0.84

Description

General part information

L717SDE09 Series

9 Position D-Sub Plug, Male Pins Connector
