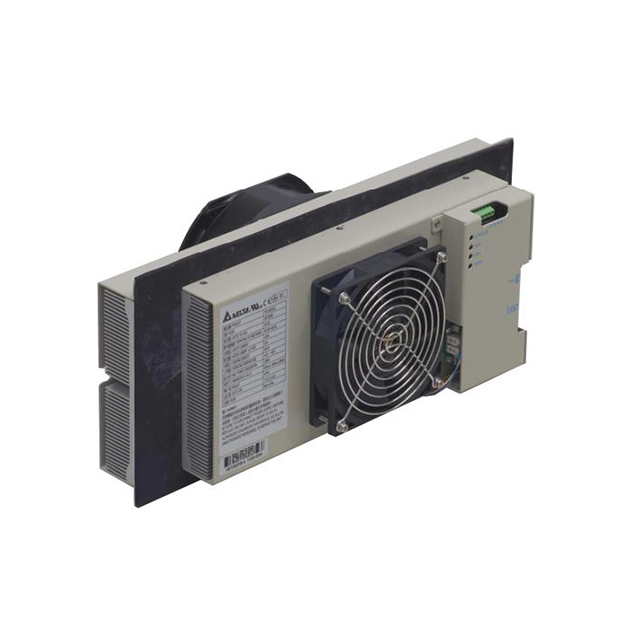

HET200VC

Active

Delta Electronics

THERMO-ELEC COOLER HI-EFFICIENCY

Search across all available documentation for this part.

Active

Delta Electronics

THERMO-ELEC COOLER HI-EFFICIENCY

Technical Specifications

Parameters and characteristics for this part

Part	Weight	Weight	Dimensions - Overall [y]	Dimensions - Overall [z]	Dimensions - Overall [x]	Heat Transfer Type	Current	Operating Temperature [Min]	Operating Temperature [Max]	Power - Cooling	Fan Location	Voltage
Delta Electronics HET200PC	13 lbs	5.9 kg	169 mm	181 mm	400 mm	Air to Air	6.1 A	-40 °C	55 °C	200 W	Cold Side / Warm Side	48 V
Delta Electronics HET200PC-B	12 lbs	5.4 kg	143 mm	181 mm	400 mm	Air to Air	5.8 A	-40 °C	55 °C	200 W	Cold Side / Warm Side	48 V
Delta Electronics HET200VC	13 lbs	5.9 kg	169 mm	181 mm	400 mm	Air to Air	12 A	-40 °C	55 °C	200 W	Cold Side / Warm Side	24 V
Delta Electronics HET200PB	20 lbs	9.1 kg	208 mm	180 mm	400 mm	Air to Air	6.7 A	-40 °C	55 °C	200 W	Cold Side / Warm Side	48 V
Delta Electronics HET200VB	20 lbs	9.1 kg	208 mm	180 mm	400 mm	Air to Air	12.2 A	-40 °C	55 °C	200 W	Cold Side / Warm Side	24 V
