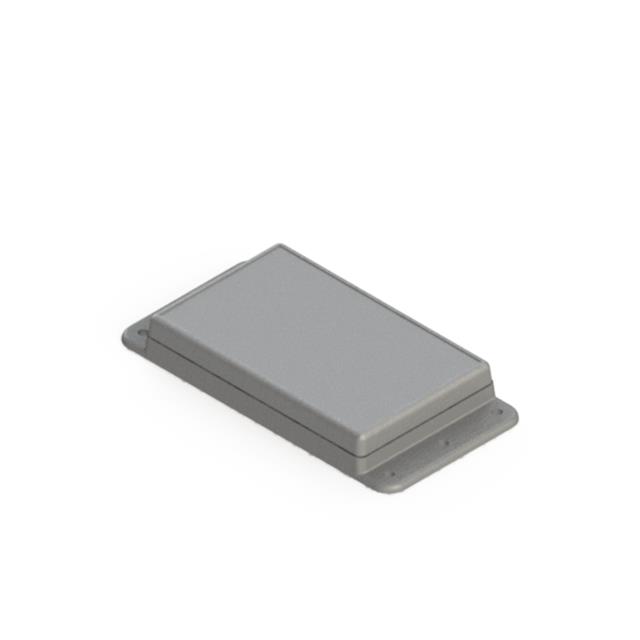

Specification	WM010I,GY

Area (L x W)	8.1 in²
Color	Gray
Container Type	Box
Design	Cover Included
Features	PCB Supports, Mounting Flange, Wall Mount
Height	0.6 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension Length	3.6 in
Size / Dimension Width	2.25 in
Thickness	0.1 in
Weight	0.086 lb

WM010 Series

Part	Weight	Color	Material	Height	Container Type	Ratings	Design	Thickness	Features	Area (L x W)	Size / Dimension Width	Size / Dimension Length	Material Flammability Rating
Serpac WM010I,BK	0.086 lb	Black	ABS Plastic	0.6 in	Box	IP40 NEMA 1	Cover Included	0.1 in	Mounting Flange PCB Supports Wall Mount	8.1 in²	2.25 in	3.6 in	UL94 HB
Serpac WM010RI,AL	0.086 lb	Almond	ABS Plastic	0.6 in	Box	IP40 NEMA 1	Cover Included	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	8.17 in²	2.27 in	3.6 in	UL94 HB
Serpac WM010I,GY	0.086 lb	Gray	ABS Plastic	0.6 in	Box	IP40 NEMA 1	Cover Included	0.1 in	Mounting Flange PCB Supports Wall Mount	8.1 in²	2.25 in	3.6 in	UL94 HB
Serpac WM010RI,BK	0.086 lb	Black	ABS Plastic	0.6 in	Box	IP40 NEMA 1	Cover Included	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	8.17 in²	2.27 in	3.6 in	UL94 HB
Serpac WM010RI,GY	0.086 lb	Gray	ABS Plastic	0.6 in	Box	IP40 NEMA 1	Cover Included	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	8.17 in²	2.27 in	3.6 in	UL94 HB
Serpac WM010I,AL	0.086 lb	Almond	ABS Plastic	0.6 in	Box	IP40 NEMA 1	Cover Included	0.1 in	Mounting Flange PCB Supports Wall Mount	8.1 in²	2.25 in	3.6 in	UL94 HB
