General part information

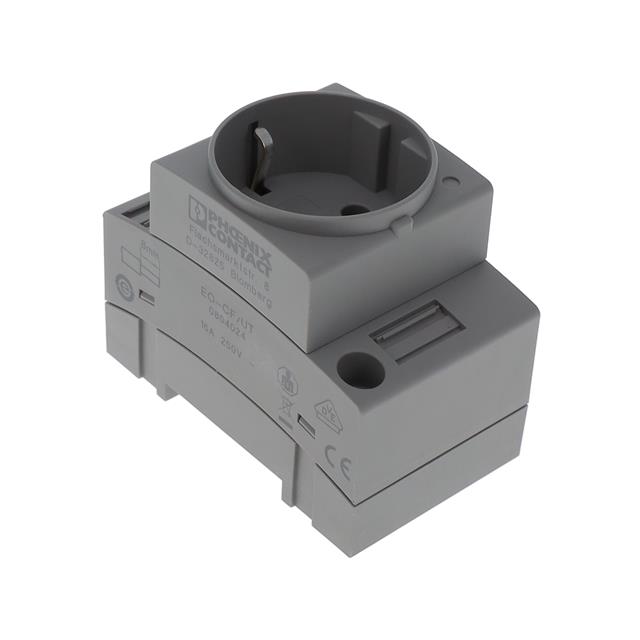

Surge Suppressors EO-CF/PT/LED
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 0804024 | EO Series |
|---|---|---|
| Approval Agency | VDE | VDE |
| Connector Style | CEE 7/4 (Schuko) | CEE 7/4 (Schuko) |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Features | - | LED Indicator |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | DIN Rail | DIN Rail |
| Number of Positions | 2 | 2 |
| Termination | Screw | Push In, Screw |
Surge Suppressors EO-CF/PT/LED
| Part | Number of Positions | Termination | Connector Style | Material Flammability Rating | Mounting Type | Approval Agency | Features | Connector Type |
|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0804041 | 2 | Push In | CEE 7/4 (Schuko) | UL94 V-0 | DIN Rail | VDE | LED Indicator | Receptacle, Female Sockets |
Phoenix Contact 0804040 | 2 | Push In | CEE 7/4 (Schuko) | UL94 V-0 | DIN Rail | VDE | LED Indicator | Receptacle, Female Sockets |
Phoenix Contact 0804038 | 2 | Push In | CEE 7/4 (Schuko) | UL94 V-0 | DIN Rail | VDE | Receptacle, Female Sockets | |
Phoenix Contact 0804024 | 2 | Screw | CEE 7/4 (Schuko) | UL94 V-0 | DIN Rail | VDE | Receptacle, Female Sockets |
