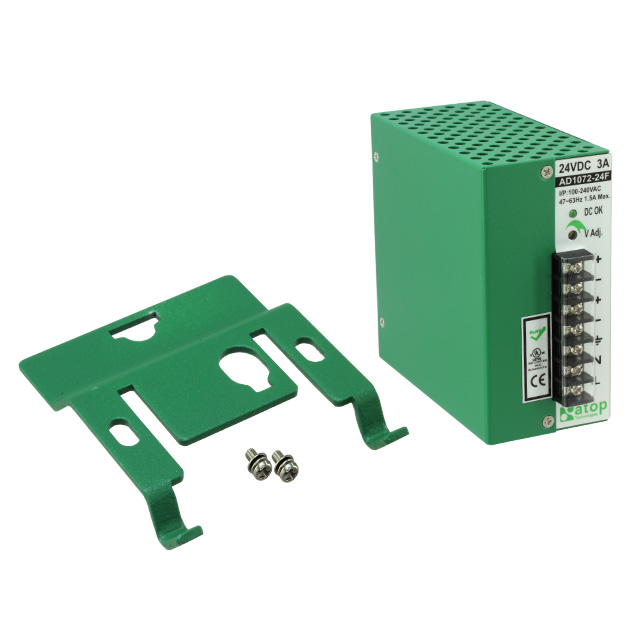

AD1072-24F

Active

ATOP Technologies

AC/DC DIN RAIL SUPPLY 24V 72W

Search across all available documentation for this part.

Active

ATOP Technologies

AC/DC DIN RAIL SUPPLY 24V 72W

Technical Specifications

Parameters and characteristics for this part

AC/DC DIN RAIL SUPPLY 24V 72W

Part	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	DC Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	DC Voltage - Input (Max) [Max]	Input Type	Power (Watts)	Applications	Voltage - Output 1	Number of Outputs	Efficiency	Features	Approval Agency
ATOP Technologies AD1072-24F	100 VAC	240 VAC	56 mm	4.33 in	121 mm	2.2 in	4.76 "	110 mm	3 A	120 V	50 °C	-20 C	370 V	AC or DC	72 W	ITE (Commercial)	24 V	1	81 %	Adjustable Output	CB, CE, cULus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 55.00

General part information

AC/DC DIN RAIL SUPPLY 24V 72W
