SLPP14-1250P88

Active

BANNER ENGINEERING

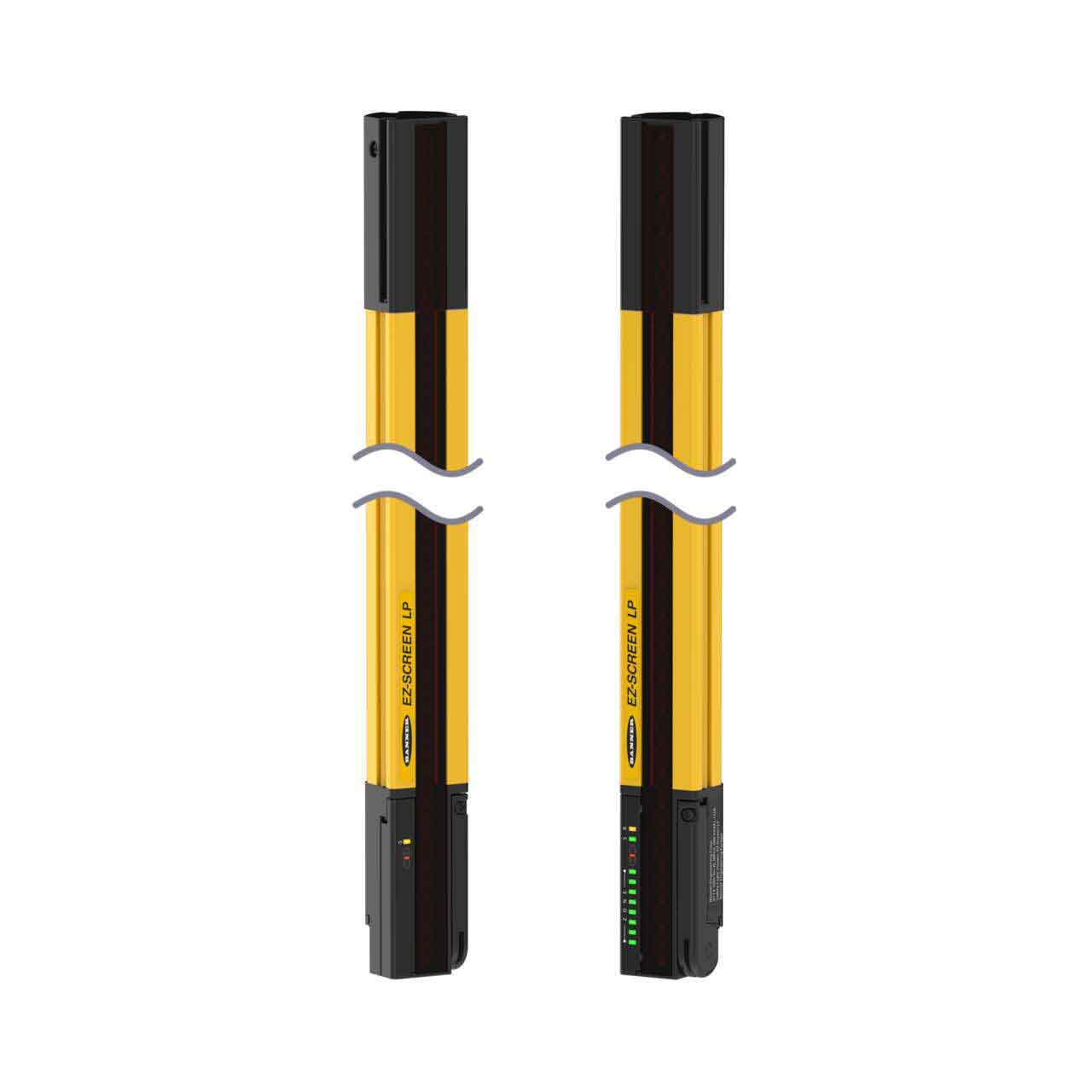

SAFETY LIGHT CURTAIN, PL E, LEVEL 4, SIL3, 125, 1.25 M, 7 M

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SAFETY LIGHT CURTAIN, PL E, LEVEL 4, SIL3, 125, 1.25 M, 7 M

Technical Specifications

Parameters and characteristics for this part

Specification	SLPP14-1250P88

Detection Capability	14 mm
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Beams	125
Operating Range [Max]	7 m
Operating Range [Min]	0.1 m
Protection	Finger
Protective Height [z]	1250 mm
Voltage - Supply	24 VDC

Part	Protective Height [z]	Protection	Operating Range [Max]	Operating Range [Min]	Features	Ingress Protection	Number of Beams [custom]	Voltage - Supply	Detection Capability	Number of Beams
BANNER ENGINEERING SLPP14-830P88	830 mm	Finger	7 m	0.1 m	Blanking	IP65 - Dust Tight Water Resistant	83	24 VDC	14 mm
BANNER ENGINEERING SLPP14-270P88	270 mm	Finger	7 m	0.1 m	Blanking	IP65 - Dust Tight Water Resistant		24 VDC	14 mm	27
BANNER ENGINEERING SLPP14-550P88	550 mm	Finger	7 m	0.1 m	Blanking	IP65 - Dust Tight Water Resistant		24 VDC	14 mm	55
BANNER ENGINEERING SLPP14-270	270 mm	Finger	7 m	0.1 m	Blanking	IP65 - Dust Tight Water Resistant		24 VDC	14 mm	27
BANNER ENGINEERING SLPP14-410P88	410 mm	Finger	7 m	0.1 m	Blanking	IP65 - Dust Tight Water Resistant		24 VDC	14 mm	41
BANNER ENGINEERING SLPP14-1250P88	1250 mm	Finger	7 m	0.1 m		IP65 - Dust Tight Water Resistant		24 VDC	14 mm	125

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Light Curtain 14mm Finger
