PT15NV18-105A2020-S

Active

Amphenol Piher Sensing Systems

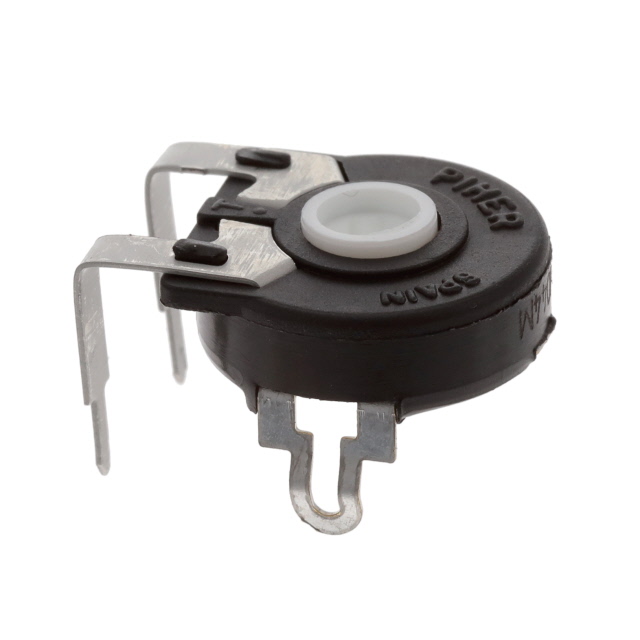

TRIMMER 1M OHM 0.25W PC PIN TOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PT15NV18-105A2020-S

Active

Amphenol Piher Sensing Systems

TRIMMER 1M OHM 0.25W PC PIN TOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT15NV18-105A2020-S

Adjustment Type	Top Adjustment
Mounting Type	Through Hole
Number of Turns	1
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	1 MOhms
Resistive Material	Carbon
Size / Dimension [diameter]	15 mm
Size / Dimension [diameter]	0.591 in
Temperature Coefficient	300 ppm/°C
Termination Style	PC Pins
Tolerance	20 %

PT15NV18 Series

Part	Termination Style	Power (Watts)	Power (Watts)	Mounting Type	Adjustment Type	Resistive Material	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Number of Turns	Temperature Coefficient	Resistance
Amphenol Piher Sensing Systems PT15NV18-103A2020-S	PC Pins	0.25 W	250 mW	Through Hole	Top Adjustment	Carbon	20 %	15 mm	0.591 in	1	300 ppm/°C	10000 Ohms
Amphenol Piher Sensing Systems PT15NV18-503A2020-S	PC Pins	0.25 W	250 mW	Through Hole	Top Adjustment	Carbon	20 %	15 mm	0.591 in	1	300 ppm/°C	50 kOhms
Amphenol Piher Sensing Systems PT15NV18-105A2020-S	PC Pins	0.25 W	250 mW	Through Hole	Top Adjustment	Carbon	20 %	15 mm	0.591 in	1	300 ppm/°C	1 MOhms
Amphenol Piher Sensing Systems PT15NV18-104A2020-S	PC Pins	0.25 W	250 mW	Through Hole	Top Adjustment	Carbon	20 %	15 mm	0.591 in	1	300 ppm/°C	100 kOhms
Amphenol Piher Sensing Systems PT15NV18-504A2020-S	PC Pins	0.25 W	250 mW	Through Hole	Top Adjustment	Carbon	20 %	15 mm	0.591 in	1	300 ppm/°C
Amphenol Piher Sensing Systems PT15NV18-253A2020-S	PC Pins	0.25 W	250 mW	Through Hole	Top Adjustment	Carbon	20 %	15 mm	0.591 in	1	300 ppm/°C	25 kOhms
Amphenol Piher Sensing Systems PT15NV18-501A2020-S	PC Pins	0.25 W	250 mW	Through Hole	Top Adjustment	Carbon	20 %	15 mm	0.591 in	1	300 ppm/°C	500 Ohms
Amphenol Piher Sensing Systems PT15NV18-254A2020-S	PC Pins	0.25 W	250 mW	Through Hole	Top Adjustment	Carbon	20 %	15 mm	0.591 in	1	300 ppm/°C	250 kOhms
Amphenol Piher Sensing Systems PT15NV18-252A2020-S	PC Pins	0.25 W	250 mW	Through Hole	Top Adjustment	Carbon	20 %	15 mm	0.591 in	1	300 ppm/°C	2.5 kOhms
Amphenol Piher Sensing Systems PT15NV18-303A2020-S	PC Pins	0.25 W	250 mW	Through Hole	Top Adjustment	Carbon	20 %	15 mm	0.591 in	1	300 ppm/°C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.07
		10	$ 0.86
		25	$ 0.79
		50	$ 0.74
		100	$ 0.69
		250	$ 0.63
		500	$ 0.59
		1000	$ 0.55

Description

General part information

PT15NV18 Series

1 MOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
