Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 65.10 | |
| 10 | $ 57.22 | |||
| 25 | $ 54.35 | |||
| 50 | $ 52.28 | |||
| 100 | $ 50.29 | |||
| 250 | $ 44.46 | |||
General part information

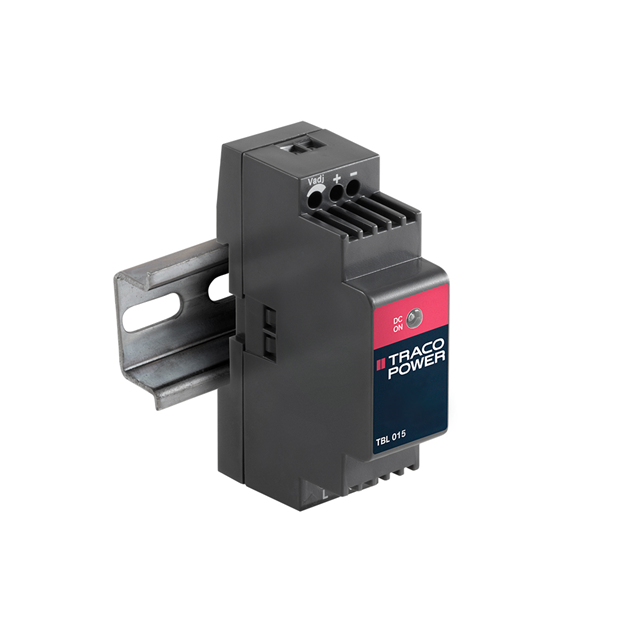

AC/DC DIN RAIL SUPPLY 12V 15W
Technical documentation and resources
Parameters and characteristics for this part
| Specification | TBL 015-112 |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 85 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | CE, cULus, CSAus, cURus, CB, SIQ |
| Current - Output (Max) [Max] | 1.25 A |
| Efficiency | 79 % |
| Features | Adjustable Output, Universal Input, IP20 |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 54.5 mm |
| Size / Dimension [x] | 2.15 " |
| Size / Dimension [y] | 26.4 mm |
| Size / Dimension [y] | 1.04 in |
| Size / Dimension [z] | 3.52 " |
| Size / Dimension [z] | 89.4 mm |
| Voltage - Output 1 | 12 V |
AC/DC DIN RAIL SUPPLY 12V 15W
| Part | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Approval Agency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Number of Outputs | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Efficiency | Features | Voltage - Output 1 | Applications | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Traco Power TBL 015-112 | 15 W | -25 °C | 70 °C | 1.25 A | CB, CE, CSAus, cULus, cURus, SIQ | 3.52 " | 26.4 mm | 54.5 mm | 2.15 " | 89.4 mm | 1.04 in | 1 | 85 VAC | 264 VAC | 79 % | Adjustable Output, IP20, Universal Input | 12 V | Industrial, ITE (Commercial) | AC |
