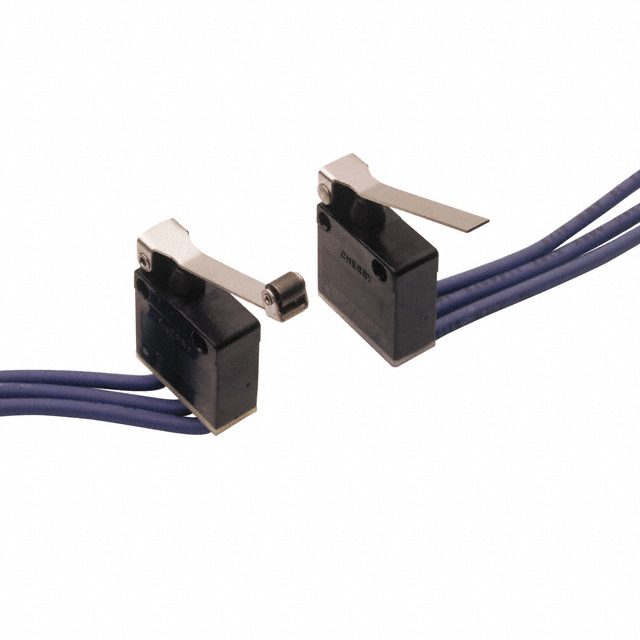

0E72-40KT

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 10A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH SNAP ACTION SPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACTION SPDT 10A 125V

Part	Termination Style	Electrical Life	Voltage Rating - AC	Pretravel	Pretravel	Differential Travel	Differential Travel	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Overtravel	Overtravel	Actuator Type	Operating Force	Operating Position	Operating Position	Circuit	Mounting Type
ZF Electronics 0E72-40KT	Wire Leads	6000 Cycles	125 V	6.1 mm	0.24 in	0.6 mm	0.025 in	10 A	85 °C	-40 °C	On-Mom	0.125 in	3.2 mm	Lever, Roller	75 gf	19.35 mm	0.762 in	SPDT	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 12.34

General part information

Switch SPDT Chassis Mount
