395-038-540-488
ActiveEDAC Inc.

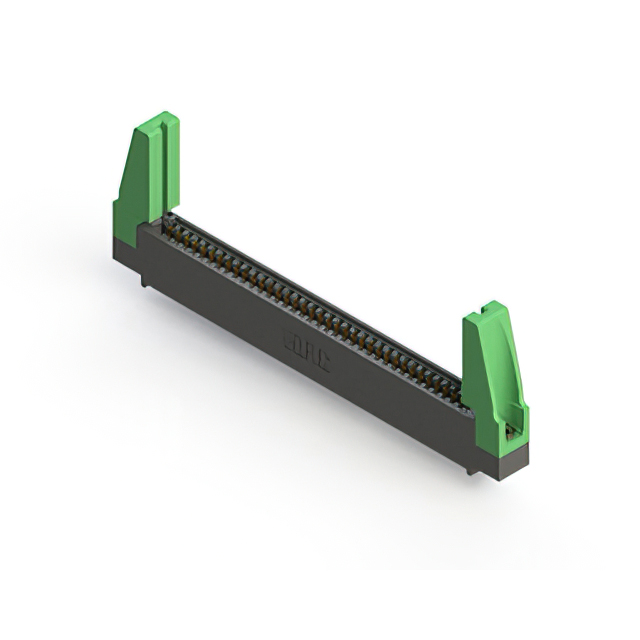

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-038-540-488
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-038-540-488 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 38 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
395-038 Series
...
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Material - Insulation | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Termination | Card Type | Flange Feature | Read Out | Contact Finish | Features | Number of Positions | Number of Positions/Bay/Row [custom] | Number of Rows | Color | Termination Rows | Gender | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Board Edge Straddle Mount | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Dual | Gold | Card Extender | 38 | 19 | 2 | Black | 2 | Female | ||
EDAC Inc. | Through Hole | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Solder | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening | Dual | Gold | 38 | 19 | 2 | Black | 2 | Female | |||
EDAC Inc. | Through Hole | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Solder | Non Specified - Dual Edge | Side Mount Opening Unthreaded | Dual | Gold | 38 | 19 | 2 | Black | 2 | Female | 3.25 mm | 0.128 in | |
EDAC Inc. | Through Hole | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Solder | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Dual | Gold | Card Guides | 38 | 19 | 2 | Black | 2 | Female | ||
EDAC Inc. | Through Hole | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Wire Wrap | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Gold | Card Guides | 38 | 19 | 2 | Black | 2 | Female | ||
EDAC Inc. | Through Hole | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Wire Wrap | Non Specified - Single Edge | Single | Gold | 38 | 38 | 1 | Black | 1 | Female | 3.25 mm | 0.128 in | ||
EDAC Inc. | Through Hole | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Wire Wrap | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Single | Gold | Card Guides | 38 | 38 | 1 | Black | 1 | Female | ||
EDAC Inc. | Through Hole | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Wire Wrap | Non Specified - Dual Edge | Side Mount Opening Unthreaded | Dual | Gold | 38 | 19 | 2 | Black | 2 | Female | 3.25 mm | 0.128 in | |
EDAC Inc. | Through Hole | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Wire Wrap | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Single | Gold | Card Guides | 38 | 38 | 1 | Black | 1 | Female | ||
EDAC Inc. | Board Edge Straddle Mount | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Solder | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Dual | Gold | 38 | 19 | 2 | Black | 2 | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-038 Series
38 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
