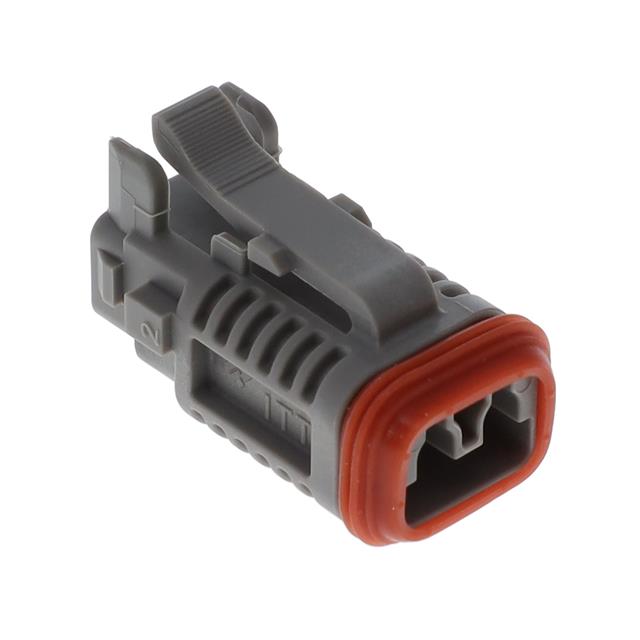

IT06-2S-002

Active

ITT Cannon, LLC

CONN PLUG HSG 2POS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN PLUG HSG 2POS

Technical Specifications

Parameters and characteristics for this part

Specification	IT06-2S-002

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Type	Contact Type	Number of Rows	Number of Positions	Mounting Type	Insulation Material	Contact Termination	Features
ITT Cannon, LLC IT06-2S-006-N	Latch Lock	-55 °C	125 °C	Black	Plug	Female Socket	1	2	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Crimp
ITT Cannon, LLC IT06-2S-006	Latch Lock	-55 °C	125 °C	Black	Plug	Female Socket	1	2	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Crimp
ITT Cannon, LLC IT06-2S-000	Latch Lock	-55 °C	125 °C	Gray	Plug	Female Socket	1	2	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Crimp	Cap (Cover) IP67 IP68 IP69K Sealed
ITT Cannon, LLC IT06-2S-000-N	Latch Lock	-55 °C	125 °C	Gray	Plug	Female Socket	1	2	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Crimp	Cap (Cover) IP67 IP68 IP69K Sealed
ITT Cannon, LLC IT06-2S-002	Latch Lock	-55 °C	125 °C	Gray	Plug	Female Socket	1	2	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Crimp
ITT Cannon, LLC IT06-2S-002-N	Latch Lock	-55 °C	125 °C	Gray	Plug	Female Socket	1	2	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Crimp
ITT Cannon, LLC IT06-2S-004-N	Latch Lock	-55 °C	125 °C	Black	Plug	Female Socket	1	2	Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Crimp	Cap (Cover) IP67 IP68 IP69K Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Plug Gray
