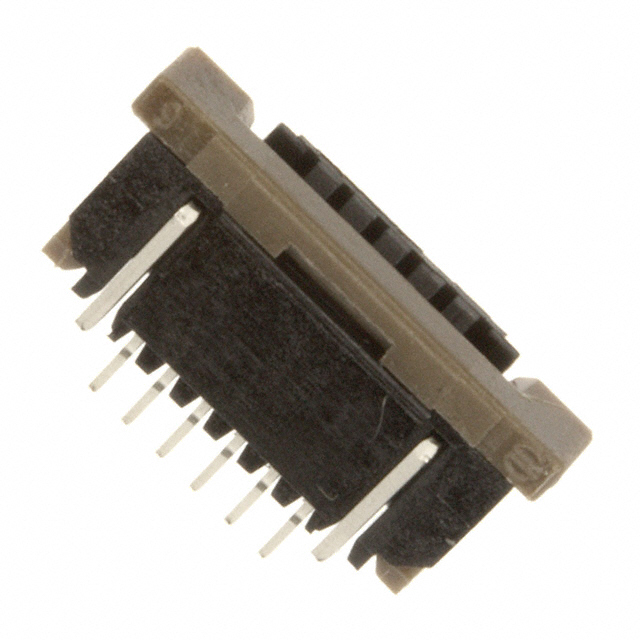

SFW6R-4STE1LF
ActiveAmphenol ICC (FCI)
CONN FFC FPC TOP 6POS 1MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
SFW6R-4STE1LF
ActiveAmphenol ICC (FCI)
CONN FFC FPC TOP 6POS 1MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFW6R-4STE1LF |
|---|---|
| Actuator Color | Brown |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Cable End Type | Tapered, Notched |
| Connector/Contact Type | Contacts, Top |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Features | Zero Insertion Force (ZIF), Solder Retention |
| FFC, FCB Thickness [z] | 0.33 mm, 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board [z] | 0.106 in |
| Height Above Board [z] | 2.7 mm |
| Housing Color | Black |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Solder |
| Voltage Rating | 100 V |
SFW6R Series
| Part | Locking Feature | Flat Flex Type | Contact Material | Height Above Board [z] | Height Above Board [z] | Cable End Type | Number of Positions | FFC, FCB Thickness [z] | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Housing Material | Mating Cycles | Actuator Color | Mounting Type | Voltage Rating | Material Flammability Rating | Termination | Pitch [x] | Pitch [x] | Connector/Contact Type | Actuator Material | FFC, FCB Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Slide Lock | FFC FPC | Phosphor Bronze | 0.106 in | 2.7 mm | Straight Tapered | 6 | 0.3 mm 0.33 mm | Tin | 105 ░C | -55 °C | Black | Polyphenylene Sulfide (PPS) Glass Filled | 20 | Black | Surface Mount Right Angle | 100 V | UL94 V-0 | Solder | 0.039 in | 1 mm | Contacts Bottom | Polyphenylene Sulfide (PPS) Glass Filled | ||
Amphenol ICC (FCI) | Slide Lock | CIC | Phosphor Bronze | 0.106 in | 2.7 mm | Tapered | 6 | Tin | 105 ░C | -55 °C | Brown | Polyphenylene Sulfide (PPS) Glass Filled | 10 | Beige | Surface Mount Right Angle | 100 V | UL94 V-0 | Solder | 0.039 in | 1 mm | Contacts Top | Polyphenylene Sulfide (PPS) Glass Filled | 0.3 mm | ||
Amphenol ICC (FCI) | Slide Lock | FFC FPC | Phosphor Bronze | 0.106 in | 2.7 mm | Notched | 6 | 0.3 mm 0.33 mm | Tin Alloy | Black | Polyphenylene Sulfide (PPS) Glass Filled | Brown | Surface Mount Right Angle | UL94 V-0 | Solder | 0.039 in | 1 mm | Contacts Top | Polyphenylene Sulfide (PPS) Glass Filled | ||||||
Amphenol ICC (FCI) | Slide Lock | FFC FPC | Phosphor Bronze | 0.106 in | 2.7 mm | Notched | 6 | 0.3 mm 0.33 mm | Tin Alloy | Black | Polyphenylene Sulfide (PPS) Glass Filled | Brown | Surface Mount Right Angle | UL94 V-0 | Solder | 0.039 in | 1 mm | Contacts Bottom | Polyphenylene Sulfide (PPS) Glass Filled | ||||||
Amphenol ICC (FCI) | Slide Lock | FPC | Phosphor Bronze | 0.106 in | 2.7 mm | Tapered | 6 | Gold | 105 ░C | -55 °C | Black | Polyphenylene Sulfide (PPS) Glass Filled | 20 | Black | Surface Mount Right Angle | 100 V | UL94 V-0 | Kinked Pin | 0.039 in | 1 mm | Contacts Top | Polyphenylene Sulfide (PPS) Glass Filled | 0.33 mm | ||
Amphenol ICC (FCI) | Slide Lock | FFC FPC | Phosphor Bronze | 0.106 in | 2.7 mm | Notched Tapered | 6 | 0.3 mm 0.33 mm | Tin | 105 ░C | -55 °C | Black | Polyphenylene Sulfide (PPS) Glass Filled | 20 | Brown | Surface Mount Right Angle | 100 V | UL94 V-0 | Solder | 0.039 in | 1 mm | Contacts Top | Polyphenylene Sulfide (PPS) Glass Filled | Solder Retention Zero Insertion Force (ZIF) | |
Amphenol ICC (FCI) | Slide Lock | FFC FPC | Phosphor Bronze | 0.106 in | 2.7 mm | Straight Tapered | 6 | 0.3 mm 0.33 mm | Tin Alloy | Brown | Polyphenylene Sulfide (PPS) Glass Filled | Black | Surface Mount Right Angle | UL94 V-0 | Solder | 0.039 in | 1 mm | Contacts Bottom | Polyphenylene Sulfide (PPS) Glass Filled | ||||||
Amphenol ICC (FCI) | Slide Lock | CIC | 0.106 in | 2.7 mm | Tapered | 6 | Polyphenylene Sulfide (PPS) Glass Filled | Surface Mount Right Angle | Solder | 0.039 in | 1 mm | Contacts Top | 0.3 mm | ||||||||||||
Amphenol ICC (FCI) | Slide Lock | FFC FPC | Phosphor Bronze | 0.106 in | 2.7 mm | Straight Tapered | 6 | 0.3 mm 0.33 mm | Tin Alloy | Brown | Polyphenylene Sulfide (PPS) Glass Filled | Black | Surface Mount Right Angle | UL94 V-0 | Solder | 0.039 in | 1 mm | Contacts Top | Polyphenylene Sulfide (PPS) Glass Filled | ||||||
Amphenol ICC (FCI) | Slide Lock | CIC | Phosphor Bronze | 0.106 in | 2.7 mm | Tapered | 6 | Tin | 105 ░C | -55 °C | Brown | Polyphenylene Sulfide (PPS) Glass Filled | 10 | Black | Surface Mount Right Angle | 100 V | UL94 V-0 | Solder | 0.039 in | 1 mm | Contacts Bottom | Polyphenylene Sulfide (PPS) Glass Filled | 0.3 mm | Solder Retention Zero Insertion Force (ZIF) |
