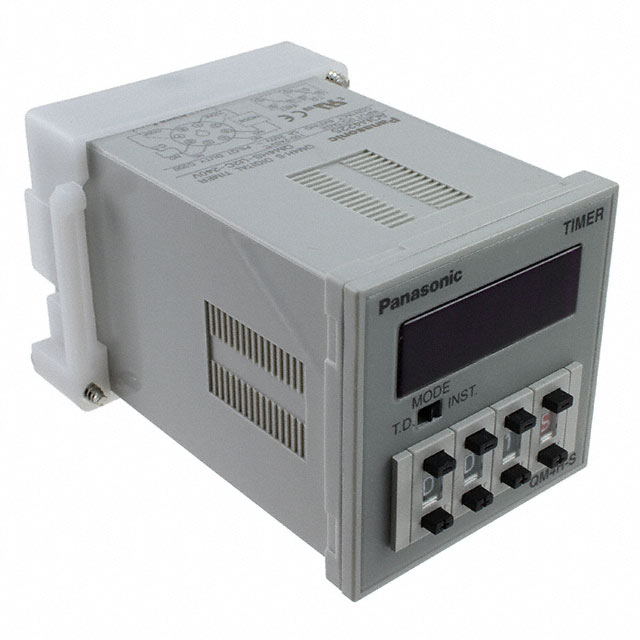

QM4HS-U2C-240V
ObsoletePanasonic Industrial Automation Sales
RELAY TIME DELAY 9990HR 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
QM4HS-U2C-240V
ObsoletePanasonic Industrial Automation Sales
RELAY TIME DELAY 9990HR 5A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QM4HS-U2C-240V |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 250 VAC, 5 A |
| Delay Time [Max] | 9990 Hrs |
| Delay Time [Min] | 0.01 Sec |
| Function | On-Delay |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Up/Down Digit Keys |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
QM4HS Series
On-Delay Time Delay Relay DPDT (2 Form C) 0.01 Sec ~ 9990 Hrs Delay 5A @ 250VAC Socketable
Documents
Technical documentation and resources
No documents available
