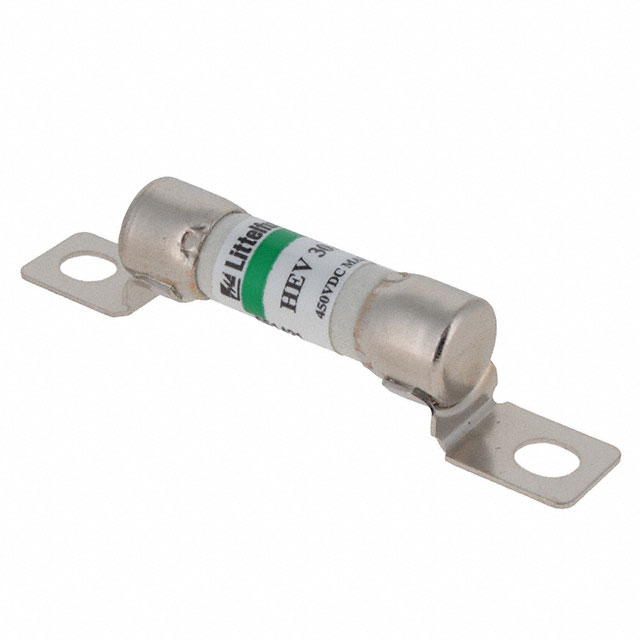

Specification	0HEV030.ZXISO

Applications	Lift Trucks
Breaking Capacity	10 kA
Current Rating	30 A
DC Cold Resistance	0.0027 Ohms
Fuse Type	Cartridge
Melting I²t	993
Mounting Type	Bolt Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	Blade Terminal (Bolt), Cylindrical
Size / Dimension Diameter	0.406 in
Size / Dimension Length	1.492 in
Voltage Rating - DC	450 V

LC HEV Series

Part	DC Cold Resistance	Melting I²t	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating - DC	Package / Case	Fuse Type	Size / Dimension Diameter	Size / Dimension Length	Applications	Mounting Type	Breaking Capacity

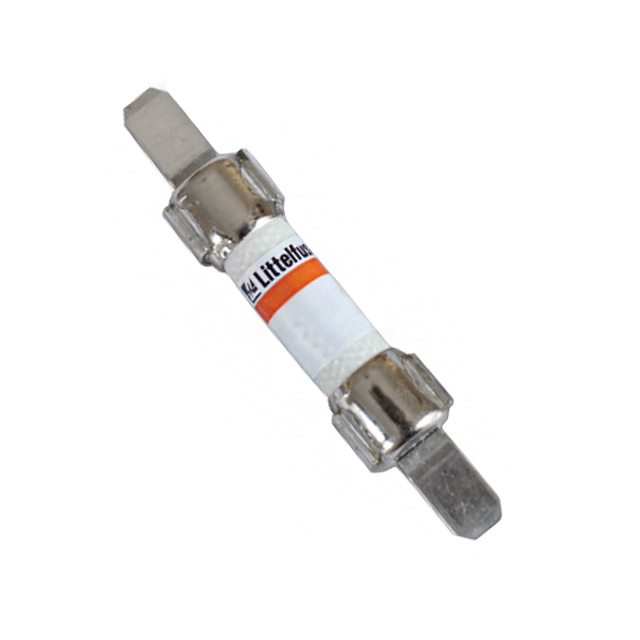

LITTELFUSE 0HEV020.ZXPY	0.005 Ohms	268	20 A	125 °C	-40 °C	450 V	Blade Terminals Cylindrical	Cartridge	0.406 in	1.532 in	Lift Trucks	Requires Holder	10 kA
LITTELFUSE 0HEV030.ZXISO	0.0027 Ohms	993	30 A	125 °C	-40 °C	450 V	Blade Terminal (Bolt) Cylindrical	Cartridge	0.406 in	1.492 in	Lift Trucks	Bolt Mount	10 kA
