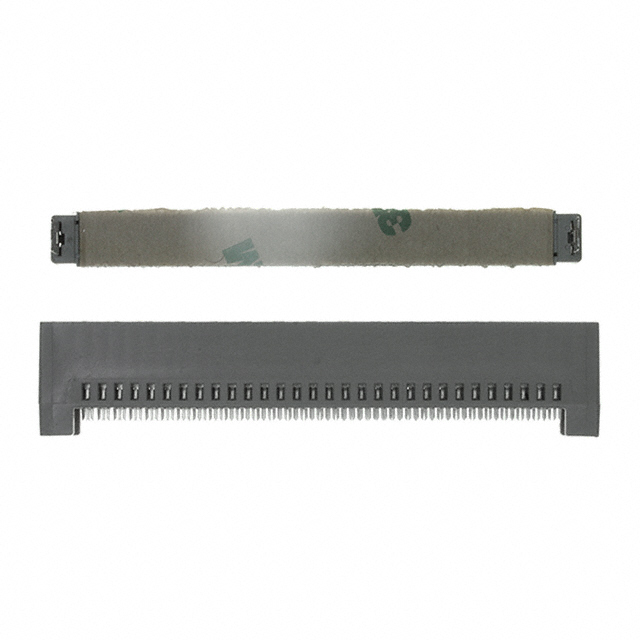

3666-0001

Obsolete

3M (TC)

CONN EDGE DUAL FMALE 60POS 0.100

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN EDGE DUAL FMALE 60POS 0.100

Technical Specifications

Parameters and characteristics for this part

Specification	3666-0001

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Gray
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Gender	Female
Material - Insulation	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	60
Number of Positions/Bay/Row [custom]	30
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	IDC

Part	Number of Positions	Number of Rows	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Color	Card Type	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Gender	Material - Insulation	Mounting Type
3M (TC) 3666-0000	60	2	IDC	0.76 Ám	30 Áin	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Gray	Non Specified - Dual Edge	30	Flush Mount Top Opening Unthreaded	0.125 "	3.18 mm	105 ░C	-55 °C	2.54 mm	0.1 in	Female	Polybutylene Terephthalate (PBT) Glass Filled
3M (TC) 3666-0001	60	2	IDC	0.76 Ám	30 Áin	Copper Alloy	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Gray	Non Specified - Dual Edge	30				105 ░C	-55 °C	2.54 mm	0.1 in	Female	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

60 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Gray
