EGA.0B.302.CLL

Active

LEMO

CONN RCPT FMALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 2P GOLD SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

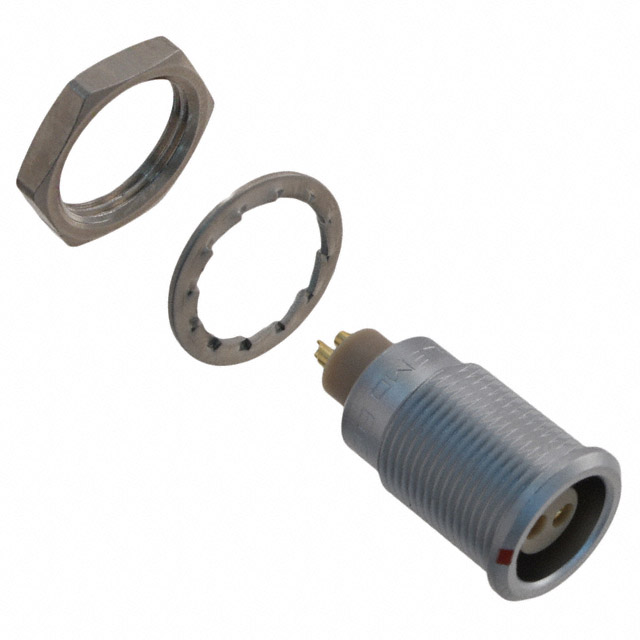

2 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EGA.0B.302.CLL	EGA.0B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	10 A	2 - 10 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	2	2 - 9
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	A	A
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	302	302 - 309
Shielding	Shielded	Shielded
Termination	-	Solder, Crimp

CONN RCPT FMALE 9POS GOLD SOLDER

Part	Orientation	Termination	Shell Size - Insert	Color	Current Rating (Amps)	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Connector Type	Mounting Type	Material Flammability Rating	Shell Material	Contact Finish - Mating	Primary Material	Fastening Type	Number of Positions	Insert Material	Mounting Feature
LEMO EGA.0B.309.CLN	A	Solder	309	Silver	2 A	Bronze	59 Áin	1.5 Ám	Chrome	IP50	-55 °C	250 °C	Shielded	Receptacle, Female Sockets	Panel Mount, Through Hole	UL94 V-0	Brass	Gold	Metal	Push-Pull	9	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut
LEMO EGA.0B.302.CLL	A		302	Silver	10 A	Bronze	59 Áin	1.5 Ám	Chrome	IP50	-55 °C	250 °C	Shielded	Receptacle, Female Sockets		UL94 V-0	Brass	Gold	Metal	Push-Pull	2	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut
LEMO EGA.0B.305.CLL	A		305	Silver	6.5 A	Bronze	59 Áin	1.5 Ám	Chrome	IP50	-55 °C	250 °C	Shielded	Receptacle, Female Sockets		UL94 V-0	Brass	Gold	Metal	Push-Pull		Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut
LEMO EGA.0B.302.CYM	A	Crimp	302	Silver	10 A	Bronze	59 Áin	1.5 Ám	Chrome	IP50	-55 °C	250 °C	Shielded	Receptacle, Female Sockets		UL94 V-0	Brass	Gold	Metal	Push-Pull	2	Polyetheretherketone (PEEK)	Bulkhead - Rear Side Nut
