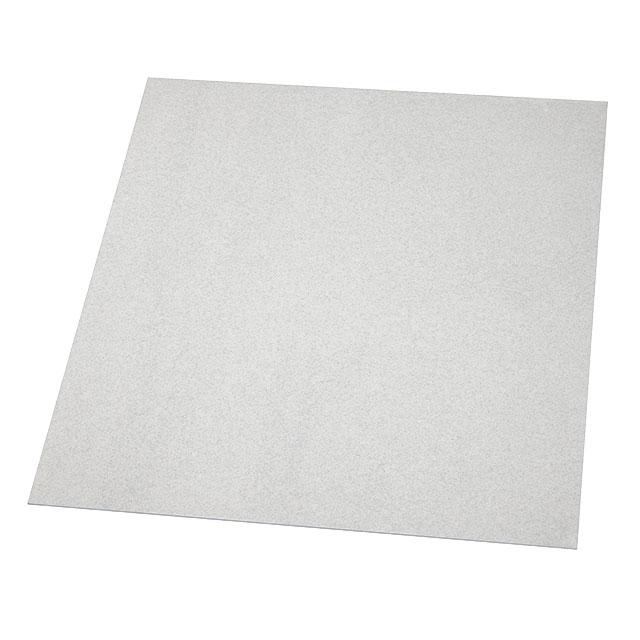

0.375-5M-5590H

Active

3M (TC)

THERM PAD 5M X 9.53MM GRY/WHT

Search across all available documentation for this part.

Active

3M (TC)

THERM PAD 5M X 9.53MM GRY/WHT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 37.69

General part information

Thermal Pad Gray, White 5.00m x 9.53mm Rectangular Tacky - Both Sides

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	0.375-5M-5590H	0.375-5 Series

Adhesive	Tacky - Both Sides	Adhesive - Both Sides, Tacky - Both Sides, Conductive, Single Sided
Backing, Carrier	-	Polyester
Color	Gray, White	White, Gray
Length	-	4.6 m
Length	-	15 ft
Material	Acrylic Elastomer	Acrylic, Acrylic Elastomer, Nickel-Copper (NI/CU) Fabric
Outline [x]	5 m	4.57 - 5 m
Outline [y]	9.53 mm	9.53 mm
Shape	Rectangular	Rectangular, Tape
Shelf Life	24 Months	24 - 60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature	-	70 - 72 °F
Storage/Refrigeration Temperature	-	21 - 22 °C
Storage/Refrigeration Temperature [Max]	77 °F	77 °F
Storage/Refrigeration Temperature [Min]	68 °F	68 °F
Thermal Conductivity	-	0.6 W/m-K
Thickness	-	0.0148 in
Thickness	-	0.375 mm
Thickness - Overall	-	0.11 mm
Thickness - Overall	-	0.004 in
Type	Interface Pad, Roll	Transfer Tape, Interface Pad, Roll, Shielding Sheet
Width	-	0.375 in
Width	-	9.53 mm

THERM PAD 4.57M X 9.53MM W/ADH

Part	Thickness	Thickness	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Adhesive	Outline [x]	Outline [y]	Type	Backing, Carrier	Thermal Conductivity	Color	Shelf Life	Shelf Life Start	Material	Shape	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Width [x]	Width [x]	Length	Length	Thickness - Overall	Thickness - Overall
3M (TC) 0.375-5-8815	0.0148 in	0.375 mm	72 °F	22 °C	Adhesive - Both Sides	4.57 m	9.53 mm	Transfer Tape	Polyester	0.6 W/m-K	White	24 Months	Date of Manufacture	Acrylic	Rectangular
3M (TC) 0.375-5M-5590H					Tacky - Both Sides	5 m	9.53 mm	Interface Pad, Roll			Gray, White	24 Months	Date of Manufacture	Acrylic Elastomer	Rectangular	77 °F	68 °F
3M (TC) 8810-0.375-5			72 °F	22 °C	Adhesive - Both Sides	4.57 m	9.53 mm	Transfer Tape	Polyester	0.6 W/m-K	White	24 Months	Date of Manufacture	Acrylic	Rectangular
3M (TC) 0.375-5-CN3190			70 °F	21 °C	Conductive, Single Sided			Shielding Sheet				60 Months	Date of Manufacture	Nickel-Copper (NI/CU) Fabric	Tape			0.375 in	9.53 mm	4.6 m	15 ft	0.11 mm	0.004 in
