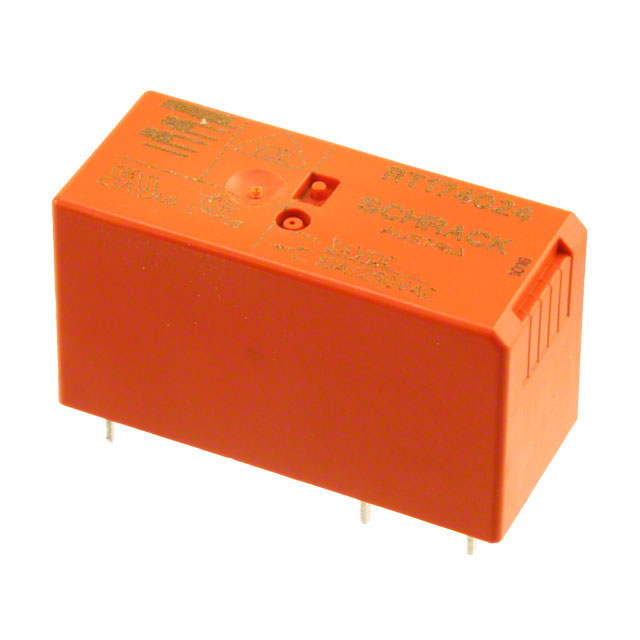

RT174024
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 10A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT174024
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 10A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT174024 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Current | 14.2 mA |
| Coil Insulation | Class F |
| Coil Resistance | 2.3 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 4000 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 8 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.70 | |
| 10 | $ 5.34 | |||
| 25 | $ 4.75 | |||
| 50 | $ 4.51 | |||
| 100 | $ 4.27 | |||
| 250 | $ 3.80 | |||
| 500 | $ 3.56 | |||
| 1000 | $ 3.32 | |||
Description
General part information
RT1740 Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
