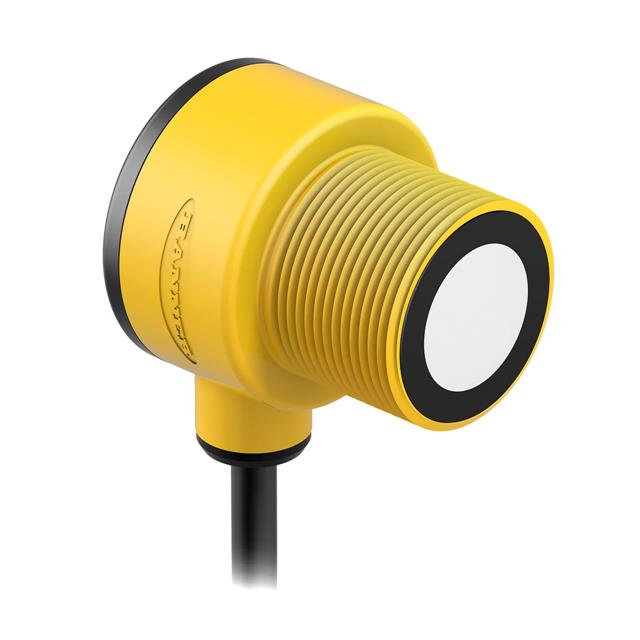

T30UXDB W/30

Active

BANNER ENGINEERING

T30UX SERIES W/ DISCRETE OUTPUT<

Search across all available documentation for this part.

Active

BANNER ENGINEERING

T30UX SERIES W/ DISCRETE OUTPUT<

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Material - Body	Sensor Type	Indicator [custom]	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Output Type	Response Frequency	Package / Case	Termination Style	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Frequency	Voltage - Rated [Min]	Voltage - Rated [Max]
BANNER ENGINEERING T30UXUA	30 VDC	10 VDC	Polybutylene Terephthalate (PBT)	Ultrasonic	LED	Unshielded	-40 °C	70 °C	IP67	Analog Voltage	224 kHz	Module	Cable	3.937 "	39.37 in	100 mm	1000 mm
BANNER ENGINEERING T30UXDAQPMA							-40 °C	70 °C										224 kHz	10 V	30 VDC
BANNER ENGINEERING T30UXDB W/30							-40 °C	70 °C										174 kHz	10 V	30 VDC
BANNER ENGINEERING T30UXIA	30 VDC	10 VDC	Polybutylene Terephthalate (PBT)	Ultrasonic	LED	Unshielded	-40 °C	70 °C	IP67	Analog Current	224 kHz	Module	Cable	3.937 "	39.37 in	100 mm	1000 mm
BANNER ENGINEERING T30UXUC							-40 °C	70 °C										114 kHz	12 V	30 VDC
BANNER ENGINEERING T30UXDAQ8	30 VDC	10 VDC	Polybutylene Terephthalate (PBT)	Ultrasonic	LED	Unshielded	-40 °C	70 °C	IP67	4-Wire NC NO NPN PNP	224 kHz	Module	Connector	3.937 "	39.37 in	100 mm	1000 mm
BANNER ENGINEERING T30UXDC	30 VDC	10 VDC	Polybutylene Terephthalate (PBT)	Ultrasonic	LED	Unshielded	-40 °C	70 °C	IP67	4-Wire NC NO NPN PNP	114 kHz	Module	Cable	11.811 in	118.11 in	300 mm	3 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 494.00
Newark	Each	1	$ 494.00

General part information

T30UX SERIES W/ DISCRETE OUTPUT<
