S-1135F31-A6T1U

Obsolete

ABLIC Inc.

IC REG LINEAR 3.1V 300MA HSNT-6A

Deep-Dive with AI

Search across all available documentation for this part.

S-1135F31-A6T1U

Obsolete

ABLIC Inc.

IC REG LINEAR 3.1V 300MA HSNT-6A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S-1135F31-A6T1U	S-1135 Series

Control Features	Enable	Enable
Current - Output	300 mA	300 mA
Current - Quiescent (Iq)	1 µA	1 µA
Current - Supply (Max) [Max]	65 µA	65 µA
Mounting Type	Surface Mount	Surface Mount
Number of Regulators	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Positive	Positive
Output Type	1.81 mOhm	1.81 mOhm

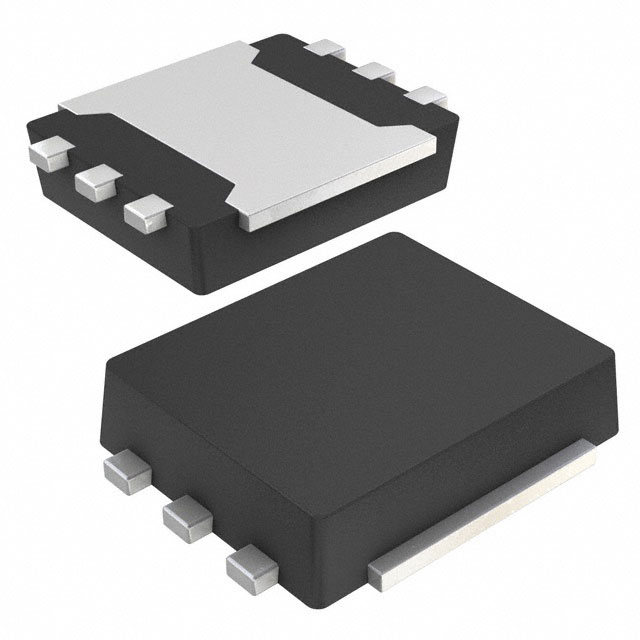

Package / Case	6-SMD, Flat Leads Exposed Pad	SC-74A, SOT-753, 6-SMD, Flat Leads Exposed Pad
Protection Features	Over Current	Over Current
PSRR	65 dB	65 - 70 dB
Supplier Device Package	HSNT-6A	SOT-23-5, HSNT-6A
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Output (Min/Fixed)	3.1 V	1 - 3.3 V

S-1135 Series

IC REG LINEAR 1.7V 300MA SOT23-5

Part	Current - Quiescent (Iq)	Protection Features	Control Features	Output Type	Mounting Type	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Supply (Max) [Max]	Supplier Device Package	Voltage - Input (Max) [Max]	Output Configuration	Number of Regulators	PSRR	Voltage - Output (Min/Fixed)
ABLIC Inc. S-1135D17-M5T1U	1 µA	Over Current	Enable	1.81 mOhm	Surface Mount	300 mA	85 °C	-40 °C	SC-74A, SOT-753	65 µA	SOT-23-5	5.5 V	Positive	1	65 dB
ABLIC Inc. S-1135C33-U5T1G	1 µA	Over Current	Enable	1.81 mOhm	Surface Mount	300 mA	85 °C	-40 °C	SC-74A, SOT-753	65 µA	SOT-23-5	5.5 V	Positive	1	65 dB	3.3 V
ABLIC Inc. S-1135C15-M5T1U	1 µA	Over Current	Enable	1.81 mOhm	Surface Mount	300 mA	85 °C	-40 °C	SC-74A, SOT-753	65 µA	SOT-23-5	5.5 V	Positive	1	65 dB	1.5 V
ABLIC Inc. S-1135F31-A6T1U	1 µA	Over Current	Enable	1.81 mOhm	Surface Mount	300 mA	85 °C	-40 °C	6-SMD, Flat Leads Exposed Pad	65 µA	HSNT-6A	5.5 V	Positive	1	65 dB	3.1 V
ABLIC Inc. S-1135B16-M5T1U	1 µA	Over Current	Enable	1.81 mOhm	Surface Mount	300 mA	85 °C	-40 °C	SC-74A, SOT-753	65 µA	SOT-23-5	5.5 V	Positive	1	65 dB	1.6 V
ABLIC Inc. S-1135B12-M5T1U	1 µA	Over Current	Enable	1.81 mOhm	Surface Mount	300 mA	85 °C	-40 °C	SC-74A, SOT-753	65 µA	SOT-23-5	5.5 V	Positive	1	70 dB	1.2 V
ABLIC Inc. S-1135A10-M5T1U	1 µA	Over Current	Enable	1.81 mOhm	Surface Mount	300 mA	85 °C	-40 °C	SC-74A, SOT-753	65 µA	SOT-23-5	5.5 V	Positive	1	70 dB	1 V
ABLIC Inc. S-1135A27-M5T1U	1 µA	Over Current	Enable	1.81 mOhm	Surface Mount	300 mA	85 °C	-40 °C	SC-74A, SOT-753	65 µA	SOT-23-5	5.5 V	Positive	1	65 dB	2.7 V
ABLIC Inc. S-1135A28-U5T1U	1 µA	Over Current	Enable	1.81 mOhm	Surface Mount	300 mA	85 °C	-40 °C	SC-74A, SOT-753	65 µA	SOT-23-5	5.5 V	Positive	1	65 dB	2.8 V
ABLIC Inc. S-1135D18-M5T1U	1 µA	Over Current	Enable	1.81 mOhm	Surface Mount	300 mA	85 °C	-40 °C	SC-74A, SOT-753	65 µA	SOT-23-5	5.5 V	Positive	1	65 dB	1.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

S-1135 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA HSNT-6A

Documents

Technical documentation and resources

No documents available
