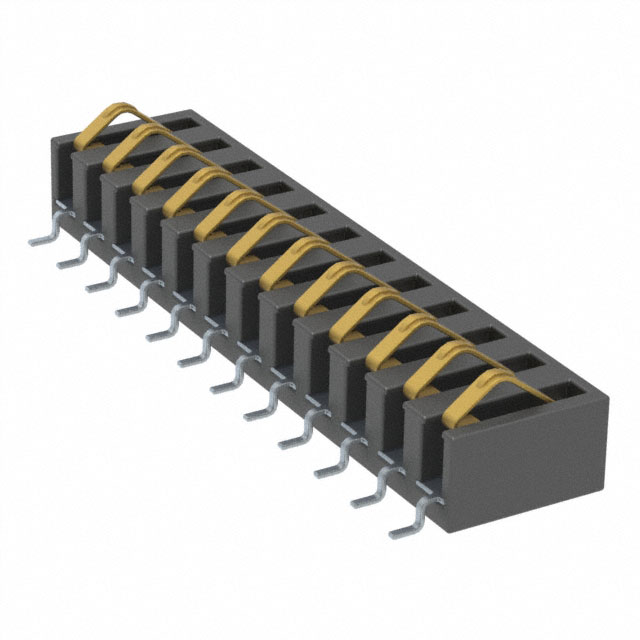

SIB-112-02-F-S-LC
ActiveSamtec Inc.
CONN SPRING MOD 12POS SMD
Deep-Dive with AI
Search across all available documentation for this part.
SIB-112-02-F-S-LC
ActiveSamtec Inc.
CONN SPRING MOD 12POS SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIB-112-02-F-S-LC |
|---|---|
| Connector Type | Compression Contact, Non-Gendered |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Material | Phosphor Bronze |
| Mounting Type | Surface Mount |
| Number of Contacts | 12 |
| Number of Rows | 1 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 7.75 | |
| 10 | $ 7.16 | |||
| 25 | $ 6.77 | |||
| 50 | $ 6.53 | |||
| 100 | $ 6.11 | |||
Description
General part information
SIB-112 Series
12 Position Spring Compression Contact, Non-Gendered Connector Surface Mount
Documents
Technical documentation and resources
