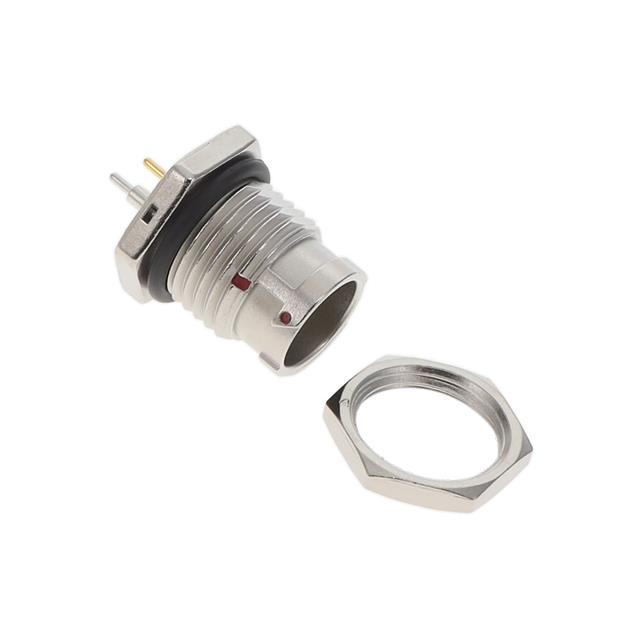

ASD-02PMMP-QC8001

Active

Amphenol LTW

CIRCULAR CONNECTOR, X-LOK SERIES, PANEL MOUNT RECEPTACLE, 2 CONTACTS, PCB PIN, PUSH LOCK

Search across all available documentation for this part.

Active

Amphenol LTW

CIRCULAR CONNECTOR, X-LOK SERIES, PANEL MOUNT RECEPTACLE, 2 CONTACTS, PCB PIN, PUSH LOCK

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Shielding	Number of Positions	Primary Material	Orientation	Insert Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish - Mating	Mounting Type	Fastening Type	Current Rating (Amps)	Connector Type	Shell Size - Insert	Mounting Feature	Contact Material	Shell Material	Shell Finish	Material Flammability Rating	Voltage Rating
Amphenol LTW ASD-02PMMP-QC8001	IPX8 - Waterproof	Shielded	2	Metal	Keyed	Thermoplastic	Silver	-40 °C	105 ░C	Solder	Gold	Panel Mount Through Hole	Push-Pull	5 A	Male Pins Receptacle	A-2	Bulkhead - Front Side Nut	Copper Alloy	Copper Alloy	Tin
Amphenol LTW ASD-02PMMP-LS7002	IP67 - Dust Tight Waterproof	Shielded	2	Metal	Keyed	Polyamide (PA) Nylon Glass Filled	Silver	-40 °C	105 ░C	Solder	Gold	Panel Mount Through Hole	Bayonet Lock	5 A	Male Pins Receptacle	A	Flange	Copper Alloy	Zinc Alloy	Nickel	UL94 V-0	250 VDC
Amphenol LTW ASD-02PMMP-LS7001	IP67 - Dust Tight Waterproof	Shielded	2	Metal	Keyed	Polyamide (PA) Nylon Glass Filled	Silver	-40 °C	105 ░C	Solder	Gold	Panel Mount Through Hole	Bayonet Lock	5 A	Male Pins Receptacle	A	Flange	Copper Alloy	Zinc Alloy	Nickel	UL94 V-0	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Solder
