826955-3

Active

TE Connectivity AMP Connectors

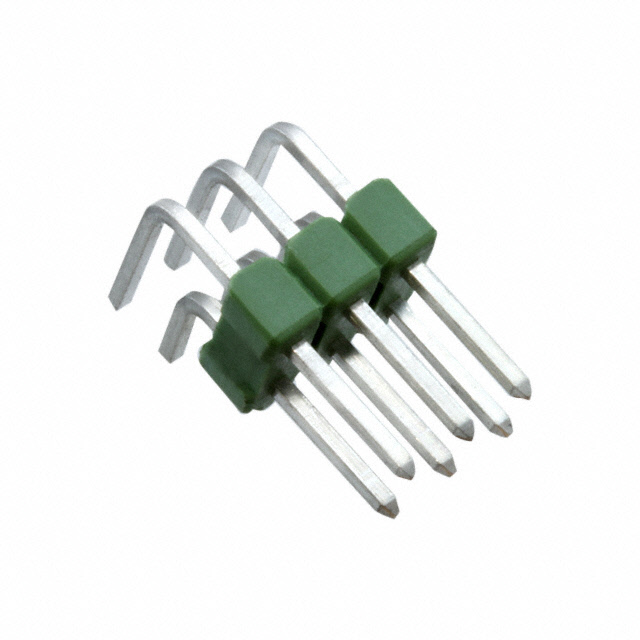

CONN HEADER R/A 6POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 6POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826955-3	826955 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	78.7 µin	78.7 µin
Contact Finish Thickness - Mating	2 µm	2 µm
Contact Finish Thickness - Post	2 çm	2 çm
Contact Finish Thickness - Post	78.7 çin	78.7 çin
Contact Length - Mating	0.228 in	0.228 in
Contact Length - Mating	5.8 mm	5.8 mm
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Height	5.56 mm	5.56 mm
Insulation Height [z]	0.219 in	0.219 in
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	6	6 - 100
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

CONN HEADER R/A 6POS 2.54MM

Part	Contact Material	Connector Type	Insulation Height [z]	Insulation Height	Shrouding	Style	Current Rating (Amps)	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post [x]	Material Flammability Rating	Number of Rows	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Insulation Color	Contact Finish - Post
TE Connectivity AMP Connectors 826955-3	Copper Alloy	Breakaway, Header	0.219 in	5.56 mm	Unshrouded	Board to Board, Cable	5 A	Solder	2 çm	78.7 çin	Polybutylene Terephthalate (PBT)	0.228 in	5.8 mm	3.2 mm	0.126 in	UL94 V-0	2	6	78.7 µin	2 µm	Through Hole, Right Angle	Male Pin	-65 ░C	105 ░C	0.1 in	2.54 mm	Push-Pull	Square	2.54 mm	0.1 in	All	Green	Tin
TE Connectivity AMP Connectors 5-826955-0	Copper Alloy	Breakaway, Header	0.219 in	5.56 mm	Unshrouded	Board to Board, Cable	5 A	Solder	2 çm	78.7 çin	Polybutylene Terephthalate (PBT)	0.228 in	5.8 mm	3.2 mm	0.126 in	UL94 V-0	2	100	78.7 µin	2 µm	Through Hole, Right Angle	Male Pin	-65 ░C	105 ░C	0.1 in	2.54 mm	Push-Pull	Square	2.54 mm	0.1 in	All	Green	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	7200	$ 0.25

General part information

Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
