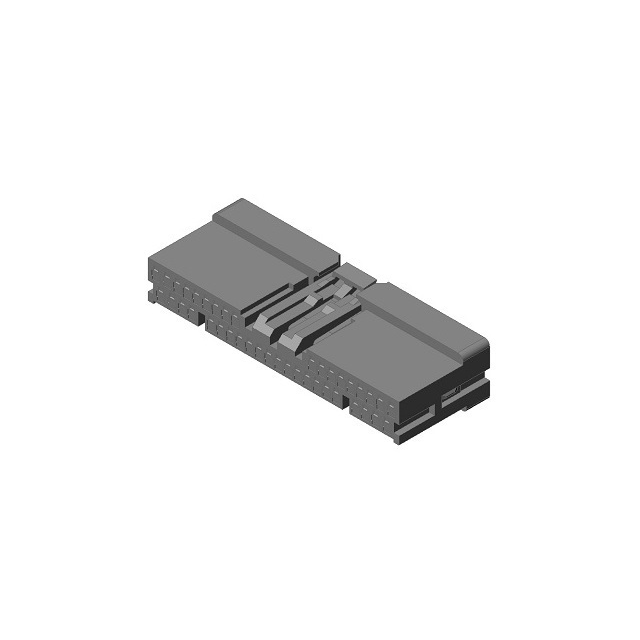

MX77D040SF1

Active

JAE Electronics

CONN RCPT HSG 40POS

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT HSG 40POS

Technical Specifications

Parameters and characteristics for this part

Specification	MX77D040SF1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	40
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

Part	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Number of Positions	Contact Type	Note	Connector Type	Number of Rows	Mounting Type	Color	Insulation Material
JAE Electronics MX77D004SF2	Crimp	85 °C	-40 °C	Latch Holder	4	Female Socket	Contacts Not Included	Receptacle	1	Free Hanging (In-Line)	Black	Polybutylene Terephthalate (PBT)
JAE Electronics MX77D040SF1	Crimp	85 °C	-40 °C	Latch Holder	40	Female Socket	Contacts Not Included	Receptacle	2	Free Hanging (In-Line)	Black	Polybutylene Terephthalate (PBT)
JAE Electronics MX77D004SF3	Crimp	85 °C	-40 °C	Latch Holder	4	Female Socket	Contacts Not Included	Receptacle	1	Free Hanging (In-Line)	Black	Polybutylene Terephthalate (PBT)
JAE Electronics MX77D020SF1	Crimp	85 °C	-40 °C	Latch Holder	20	Female Socket	Contacts Not Included	Receptacle	2	Free Hanging (In-Line)	Black	Polybutylene Terephthalate (PBT)
JAE Electronics MX77D008SF1	Crimp	85 °C	-40 °C	Latch Holder	8	Female Socket	Contacts Not Included	Receptacle	2	Free Hanging (In-Line)	Black	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Rectangular Connectors - Housings Receptacle Black
