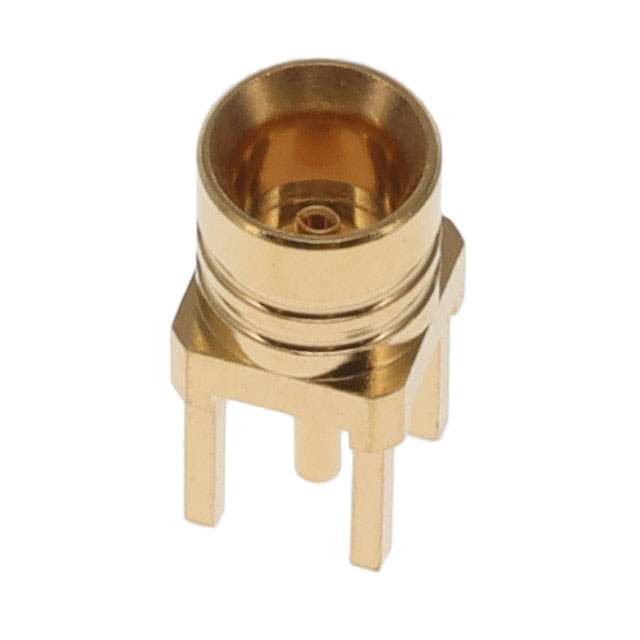

MMCXV-J-P-GF-ST-TH1

Active

Samtec Inc.

CONN MMCX 0HZ TO 6GHZ 50OHM SOLDER ST THRU-HOLE F GOLD OVER NICKEL TRAY

Search across all available documentation for this part.

Active

Samtec Inc.

CONN MMCX 0HZ TO 6GHZ 50OHM SOLDER ST THRU-HOLE F GOLD OVER NICKEL TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	MMCXV-J-P-GF-ST-TH1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX (V)
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	High Vibration
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Connector Type	Mounting Type	Contact Termination	Housing Color	Impedance	Dielectric Material	Center Contact Plating	Shield Termination	Body Finish	Body Material	Features	Frequency - Max [Max]	Center Contact Material	Connector Style	Number of Ports
Samtec Inc. MMCXV-J-P-HF-ST-EM1	125 °C	-65 ░C	Snap-On	Female Socket Jack	Board Edge Cutout Surface Mount	Solder	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Gold	Solder	Gold	Brass	High Vibration	6000 MHz	Beryllium Copper	MMCX (V)	1
Samtec Inc. MMCXV-J-P-GF-ST-TH1	125 °C	-65 ░C	Snap-On	Female Socket Jack	Through Hole	Solder	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	Gold	Solder	Gold	Brass	High Vibration	6000 MHz	Beryllium Copper	MMCX (V)	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMCX (V) Connector Jack, Female Socket 50 Ohms Through Hole Solder
