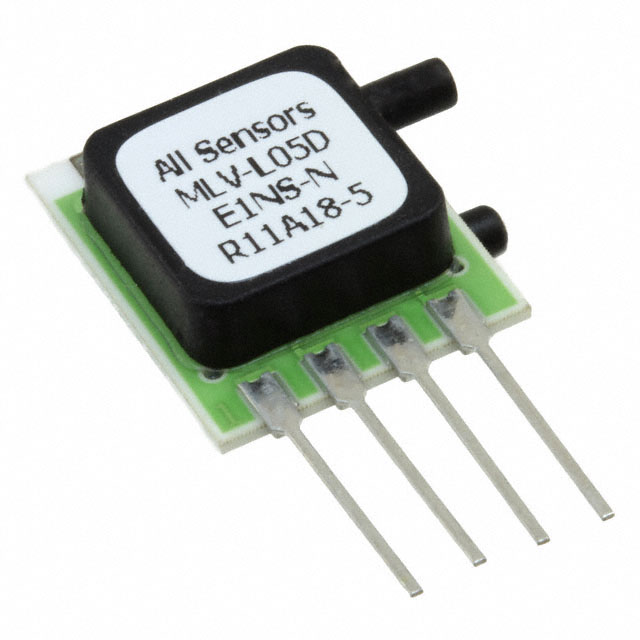

MLV-L05D-E1NS-N

Active

Amphenol All Sensors Corporation

SENSOR 0.18PSID 0.08" .015V 4SIP

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 0.18PSID 0.08" .015V 4SIP

Technical Specifications

Parameters and characteristics for this part

SENSOR 0.18PSID 0.08" .015V 4SIP

Part	Features	Pressure Type	Maximum Pressure	Maximum Pressure	Operating Pressure	Operating Pressure	Output [Max]	Output [Min]	Voltage - Supply	Termination Style	Output Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Port Style	Accuracy	Port Size	Port Size	Port Size	Mounting Type	Package / Case	Applications
Amphenol All Sensors Corporation MLV-L05D-E1NS-N	Temperature Compensated	Differential	7.23 PSI	49.83 kPa	1.25 kPa	0.18 PSI	15 mV	0 mV	12 VDC	PC Pin	Wheatstone Bridge	4-SIP	-25 °C	85 °C	Barbless	0.3 %	Male, Tube, Dual	0.08 "	2.04 mm	Through Hole	4-SIP, Dual Ports, Same Side	Board Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 57.32

General part information

Pressure Sensor ±0.18PSI (±1.25kPa) Differential Male - 0.08" (2.04mm) Tube, Dual 0 mV ~ 15 mV (5V) 4-SIP, Dual Ports, Same Side
