4-794630-8

Active

TE Connectivity AMP Connectors

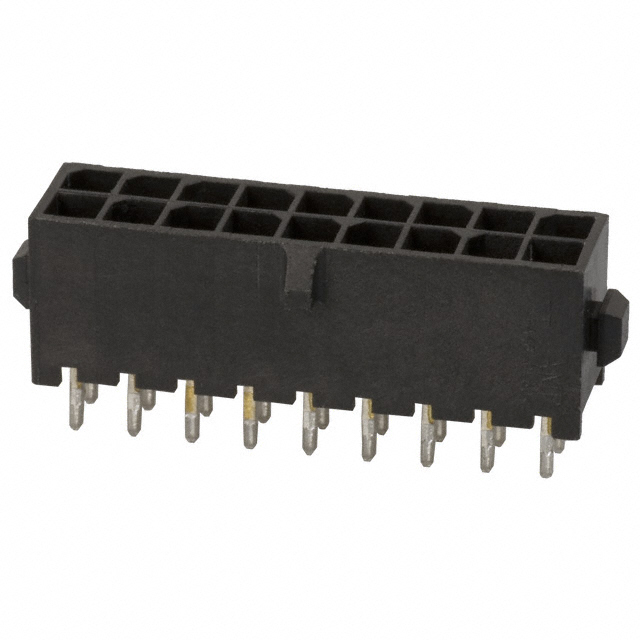

CONN HEADER VERT 18POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4-794630-8

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 18POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.49
		10	$ 2.06
		80	$ 1.74
		440	$ 1.52
		945	$ 1.43
		4900	$ 1.25

Description

General part information

794630 Series

Connector Header Through Hole 18 position 0.118" (3.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4-794630-8	794630 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	-	Tin-Lead
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	2.54 çm	2.54 çm
Contact Finish Thickness - Mating	100 çin	100 çin
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	Black	Black
Insulation Height	9.25 mm	9.25 mm
Insulation Height	0.364 in	0.364 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	18	2 - 24
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder, Press-Fit	Solder, Press-Fit
Voltage Rating	250 VDC	250 VDC

794630 Series

CONN HEADER VERT 24POS 3MM

Part	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Contact Material	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Shrouding	Insulation Material	Contact Finish - Post	Termination	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Material Flammability Rating	Number of Rows	Mounting Type	Number of Positions	Insulation Color	Style	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Number of Positions Loaded	Contact Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Finish - Mating
TE Connectivity AMP Connectors 5-794630-4	3 mm	0.118 in	2.54 µm	100 µin	250 VDC	Brass	General Purpose	2.54 çm	100 çin	Header	Shrouded - 4 Wall	Nylon, Polyamide (PA)	Tin	Press-Fit, Solder	Square	-40 °C	105 ░C	Locking Ramp	UL94 V-0	2	Through Hole	24	Black	Board to Cable/Wire	3.18 mm	0.125 in	Varies by Wire Gauge	All	Male Pin	0.118 in	3 mm	9.25 mm	0.364 in
TE Connectivity AMP Connectors 3-794630-6	3 mm	0.118 in	2.54 µm	100 µin	250 VDC	Brass	General Purpose	2.54 çm	100 çin	Header	Shrouded - 4 Wall	Nylon, Polyamide (PA)	Tin	Press-Fit, Solder	Square	-40 °C	105 ░C	Locking Ramp	UL94 V-0	2	Through Hole	6	Black	Board to Cable/Wire	3.18 mm	0.125 in	Varies by Wire Gauge	All	Male Pin	0.118 in	3 mm	9.25 mm	0.364 in
TE Connectivity AMP Connectors 5-794630-0	3 mm	0.118 in	2.54 µm	100 µin	250 VDC	Brass	General Purpose	2.54 çm	100 çin	Header	Shrouded - 4 Wall	Nylon, Polyamide (PA)	Tin	Press-Fit, Solder	Square	-40 °C	105 ░C	Locking Ramp	UL94 V-0	2	Through Hole	20	Black	Board to Cable/Wire	3.18 mm	0.125 in	Varies by Wire Gauge	All	Male Pin	0.118 in	3 mm	9.25 mm	0.364 in
TE Connectivity AMP Connectors 4-794630-8	3 mm	0.118 in	2.54 µm	100 µin	250 VDC	Brass	General Purpose	2.54 çm	100 çin	Header	Shrouded - 4 Wall	Nylon, Polyamide (PA)	Tin	Press-Fit, Solder	Square	-40 °C	105 ░C	Locking Ramp	UL94 V-0	2	Through Hole	18	Black	Board to Cable/Wire	3.18 mm	0.125 in	Varies by Wire Gauge	All	Male Pin	0.118 in	3 mm	9.25 mm	0.364 in
TE Connectivity AMP Connectors 4-794630-4	3 mm	0.118 in	2.54 µm	100 µin	250 VDC	Brass	General Purpose	2.54 çm	100 çin	Header	Shrouded - 4 Wall	Nylon, Polyamide (PA)	Tin	Press-Fit, Solder	Square	-40 °C	105 ░C	Locking Ramp	UL94 V-0	2	Through Hole	14	Black	Board to Cable/Wire	3.18 mm	0.125 in	Varies by Wire Gauge	All	Male Pin	0.118 in	3 mm	9.25 mm	0.364 in
TE Connectivity AMP Connectors 1-794630-4	3 mm	0.118 in	2.54 µm	100 µin	250 VDC	Brass	General Purpose	2.54 çm	100 çin	Header	Shrouded - 4 Wall	Nylon, Polyamide (PA)	Tin-Lead	Press-Fit, Solder	Square	-40 °C	105 ░C	Locking Ramp	UL94 V-0	2	Through Hole	14	Black	Board to Cable/Wire	3.18 mm	0.125 in	Varies by Wire Gauge	All	Male Pin	0.118 in	3 mm	9.25 mm	0.364 in	Tin-Lead
TE Connectivity AMP Connectors 3-794630-2	3 mm	0.118 in	2.54 µm	100 µin	250 VDC	Brass	General Purpose	2.54 çm	100 çin	Header	Shrouded - 4 Wall	Nylon, Polyamide (PA)	Tin	Press-Fit, Solder	Square	-40 °C	105 ░C	Locking Ramp	UL94 V-0	2	Through Hole	2	Black	Board to Cable/Wire	3.18 mm	0.125 in	Varies by Wire Gauge	All	Male Pin			9.25 mm	0.364 in
TE Connectivity AMP Connectors 794630-4	3 mm	0.118 in	2.54 µm	100 µin	250 VDC	Brass	General Purpose	2.54 çm	100 çin	Header	Shrouded - 4 Wall	Nylon, Polyamide (PA)	Tin-Lead	Press-Fit, Solder	Square	-40 °C	105 ░C	Locking Ramp	UL94 V-0	2	Through Hole	4	Black	Board to Cable/Wire	3.18 mm	0.125 in	Varies by Wire Gauge	All	Male Pin	0.118 in	3 mm	9.25 mm	0.364 in	Tin-Lead
