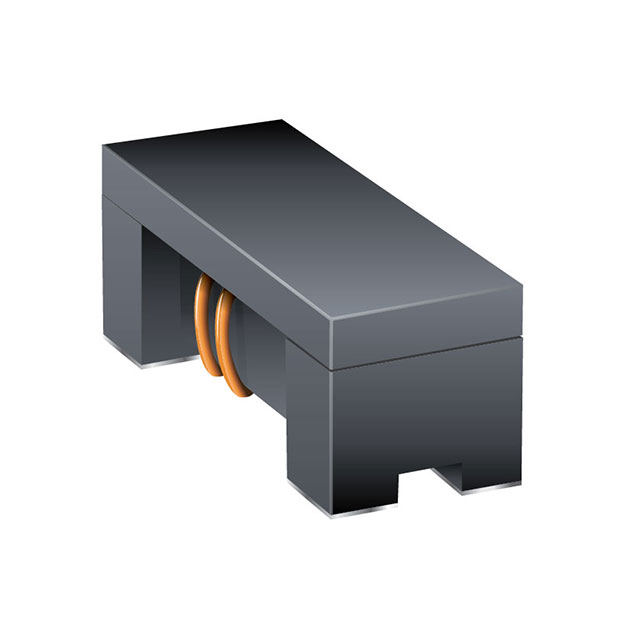

SRF2012A-801Y

Active

Bourns Inc.

FILTER, COMMON MODE, 300MA, 800OHM, SRF2012A SERIES, 2MM X 1.2MM X 1.2MM

Search across all available documentation for this part.

Active

Bourns Inc.

FILTER, COMMON MODE, 300MA, 800OHM, SRF2012A SERIES, 2MM X 1.2MM X 1.2MM

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Voltage Rating - DC	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Impedance @ Frequency	Number of Lines	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Height (Max)	Height (Max) [Max]	Ratings
Bourns Inc. SRF2012A-801Y	Surface Mount	50 VDC	300 mA	880 mOhm	800 Ohms	2	-55 °C	125 °C	2 mm	0.047 in	0.079 in	1.2 mm	4 Lead	Horizontal	1.4 mm	0.055 in
Bourns Inc. SRF2012A-221YA	Surface Mount	50 VDC	300 mA	400 mOhm	220 Ohms	2	-40 °C	125 °C	2 mm	0.047 in	0.079 in	1.2 mm	4 Lead	Horizontal	1.4 mm	0.055 in	AEC-Q200
Bourns Inc. SRF2012A-161YA	Surface Mount	50 VDC	350 mA	350 mOhm	160 Ohms	2	-40 °C	125 °C	2 mm	0.047 in	0.079 in	1.2 mm	4 Lead	Horizontal	1.4 mm	0.055 in	AEC-Q200
Bourns Inc. SRF2012A-670YA	Surface Mount	50 VDC	400 mA	250 mOhm	67 Ohms	2	-40 °C	125 °C	2 mm	0.047 in	0.079 in	1.2 mm	4 Lead	Horizontal	1.4 mm	0.055 in
Bourns Inc. SRF2012A-261YA	Surface Mount	50 VDC	300 mA	400 mOhm	260 Ohms	2	-40 °C	125 °C	2 mm	0.047 in	0.079 in	1.2 mm	4 Lead	Horizontal	1.4 mm	0.055 in	AEC-Q200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Line Common Mode Choke Surface Mount 800 Ohms @ 100 MHz 300mA DCR 880mOhm
