PVDZ172NS-TPBF

Active

Infineon Technologies

SSR RELAY SPST-NO 1.5A 0-60V

Search across all available documentation for this part.

Active

Infineon Technologies

SSR RELAY SPST-NO 1.5A 0-60V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Max]	Package / Case [x]	Package / Case [x]	Package / Case	Load Current	Voltage - Input	On-State Resistance (Max) [Max]	Mounting Type	Approval Agency	Supplier Device Package	Output Type
Infineon Technologies PVDZ172NSPBF	Gull Wing	85 °C	-40 °C	60 V	0.3 "	7.62 mm	4 Leads 8-SMD	1.5 A	1.2 VDC	250 mOhm	Surface Mount	UL	8-SMD	DC
Infineon Technologies PVDZ172NS-TPBF	Gull Wing	85 °C	-40 °C	60 V	0.3 "	7.62 mm	4 Leads 8-SMD	1.5 A	1.2 VDC	250 mOhm	Surface Mount	UL	8-SMD	DC
Infineon Technologies PVDZ172NS-T	Gull Wing	85 °C	-40 °C	60 V	0.3 "	7.62 mm	4 Leads 8-SMD	1.5 A	1.2 VDC	250 mOhm	Surface Mount	UL	8-SMD	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	750	$ 6.87

General part information

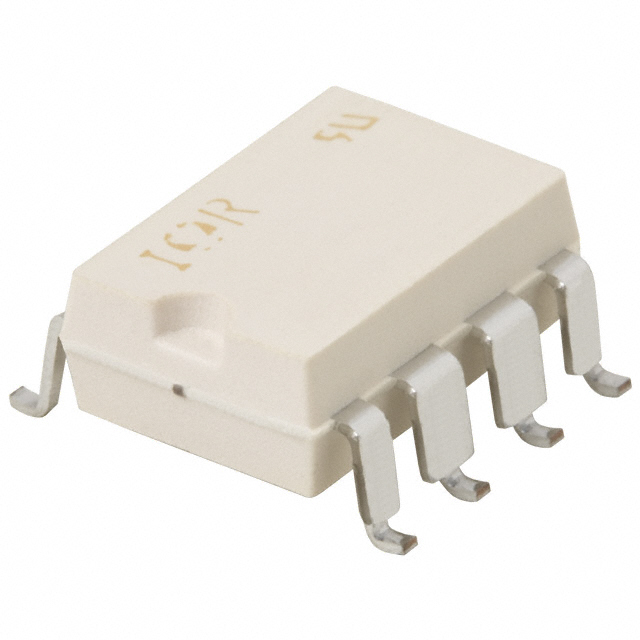

Solid State SPST-NO (1 Form A) 8-SMD (0.300", 7.62mm), 4 Leads

Technical documentation and resources
