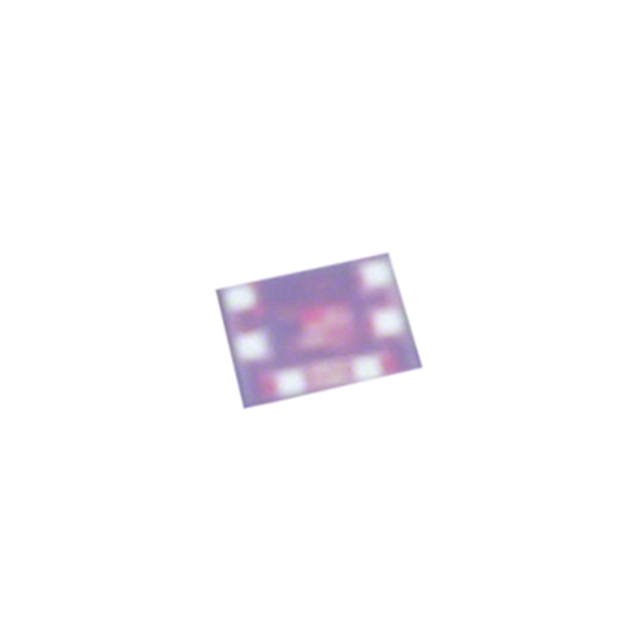

NJU6221CC-V-CT4

Active

Nisshinbo Micro Devices Inc

XTAL OSC XO CMOS SMD

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

XTAL OSC XO CMOS SMD

Technical Specifications

Parameters and characteristics for this part

Specification	NJU6221CC-V-CT4

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	10 ÁA
Current - Supply (Max) [Max]	3 mA
Frequency Stability	1 ppm
Function	Enable/Disable
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	CMOS
Package / Case	Die
Type	XO (Standard)
Voltage - Supply [Max]	3.63 V
Voltage - Supply [Min]	1.62 V

Part	Current - Supply (Disable) (Max) [Max]	Mounting Type	Current - Supply (Max) [Max]	Output	Function	Frequency Stability	Voltage - Supply [Max]	Voltage - Supply [Min]	Base Resonator	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type
Nisshinbo Micro Devices Inc NJU6221CC-V-CT4	10 ÁA	Surface Mount	3 mA	CMOS	Enable/Disable	1 ppm	3.63 V	1.62 V	Crystal	85 °C	-40 °C	Die	XO (Standard)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	5000	$ 0.13

General part information

XO (Standard) CMOS Oscillator 1.62V ~ 3.63V Enable/Disable Die
