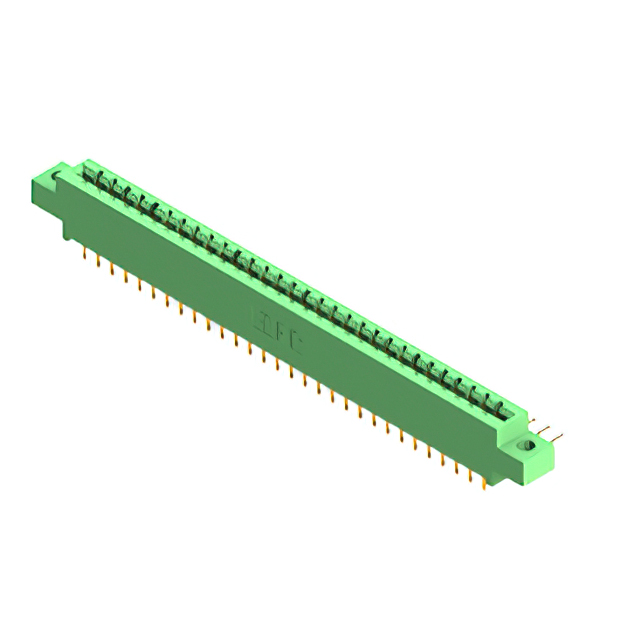

837-060-558-804
ActiveEDAC Inc.
837 HIGH TEMP' SERIES (.156" (3.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-060-558-804
ActiveEDAC Inc.
837 HIGH TEMP' SERIES (.156" (3.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-060-558-804 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 60 |
| Number of Positions/Bay/Row [custom] | 30 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
837-060 Series
...
| Part | Gender | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Termination Rows | Termination | Color | Flange Feature | Read Out | Number of Positions | Mounting Type | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Contact Finish | Contact Type | Number of Rows | Number of Positions/Bay/Row [custom] | Features | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Wire Wrap | Green | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 60 | Through Hole | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Cantilever | 2 | 30 | |||||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Solder | Green | Dual | 60 | Board Edge Straddle Mount | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Cantilever | 2 | 30 | Card Extender | |||||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Solder | Green | Side Mount Opening Unthreaded | Dual | 60 | Through Hole | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Cantilever | 2 | 30 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Wire Wrap | Green | Dual | 60 | Through Hole | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Cantilever | 2 | 30 | ||||||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Solder | Green | Side Mount Opening Unthreaded | Dual | 60 | Through Hole | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Cantilever | 2 | 30 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Solder | Green | Flush Mount Top Opening Unthreaded | Dual | 60 | Board Edge Straddle Mount | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Cantilever | 2 | 30 | Card Extender | 3.25 mm | 0.128 " | ||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Solder | Green | Dual | 60 | Through Hole Right Angle | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Cantilever | 2 | 30 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Solder | Green | M3 Threaded Insert Top Mount Opening | Dual | 60 | Through Hole | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Cantilever | 2 | 30 | |||||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Wire Wrap | Green | Dual | 60 | Through Hole | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Cantilever | 2 | 30 | ||||||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Solder | Green | Top Mount Opening Unthreaded | Dual | 60 | Through Hole Right Angle | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | Cantilever | 2 | 30 | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
837-060 Series
60 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
