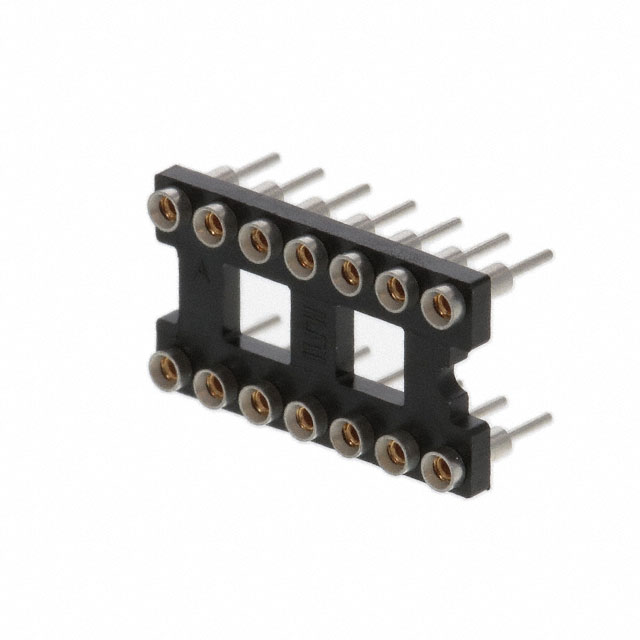

ICO-314-SGT
ActiveSamtec Inc.
CONN IC DIP SKT 14POS
Deep-Dive with AI
Search across all available documentation for this part.
ICO-314-SGT
ActiveSamtec Inc.
CONN IC DIP SKT 14POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ICO-314-SGT |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 10 çin |
| Contact Finish Thickness - Post | 0.25 çm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post [custom] | Brass |
| Contact Resistance | 10 mOhm |
| Current Rating (Amps) | 1 A |
| Features | Open Frame |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 14 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 3.18 mm |
| Termination Post Length | 0.125 in |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.13 | |
| 10 | $ 1.81 | |||
| 25 | $ 1.69 | |||
| 50 | $ 1.61 | |||
| 100 | $ 1.53 | |||
| 250 | $ 1.44 | |||
| 500 | $ 1.37 | |||
| 1000 | $ 1.30 | |||
| 2500 | $ 1.24 | |||
Description
General part information
ICO-314 Series
14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
