Q-1U0520005.75M

Active

Amphenol Custom Cable

COAX CBL N-TYPE TO TNC 29.5"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL N-TYPE TO TNC 29.5"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U0520005.75M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms

Part	2nd Connector Mounting Type	Color	2nd Contact Gender	1st Contact Gender	2nd Connector	Frequency - Max [Max]	Overall Impedance	Length	Length	Length	1st Connector Mounting Feature	1st Connector	1st Connector Mounting Type	Features	Cable Type	Length [x]	Length [x]
Amphenol Custom Cable Q-1U0520003002M	Free Hanging (In-Line)	Black	Male	Female	TNC Plug	11 GHz	50 Ohms	6.6 ft	78.7 in	2 m	Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	Shielded	RG-174
Amphenol Custom Cable Q-1U0520003003i	Free Hanging (In-Line)	Black	Male	Female	TNC Plug	11 GHz	50 Ohms		3 in	76.2 mm	Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	Shielded	RG-174
Amphenol Custom Cable Q-1U05200030.5M	Free Hanging (In-Line)	Black	Male	Female	TNC Plug	11 GHz	50 Ohms		19.69 "	50 cm	Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	Shielded	RG-174
Amphenol Custom Cable Q-1U0520005.75M	Free Hanging (In-Line)	Copper	Male	Female	TNC Plug	11 GHz	50 Ohms		29.53 "	750 mm	Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	Shielded	RG-316
Amphenol Custom Cable Q-1U0520003048i	Free Hanging (In-Line)	Black	Male	Female	TNC Plug	11 GHz	50 Ohms	4 ft	48 in	1200 mm	Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	Shielded	RG-174
Amphenol Custom Cable Q-1U0520003001M	Free Hanging (In-Line)	Black	Male	Female	TNC Plug	11 GHz	50 Ohms	3.3 ft	39.4 in	1 m	Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	Shielded	RG-174
Amphenol Custom Cable Q-1U0520003018i	Free Hanging (In-Line)	Black	Male	Female	TNC Plug	11 GHz	50 Ohms				Bulkhead - Front Side Nut	N-Type Jack	Panel Mount	Shielded	RG-174	457.2 mm	457.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

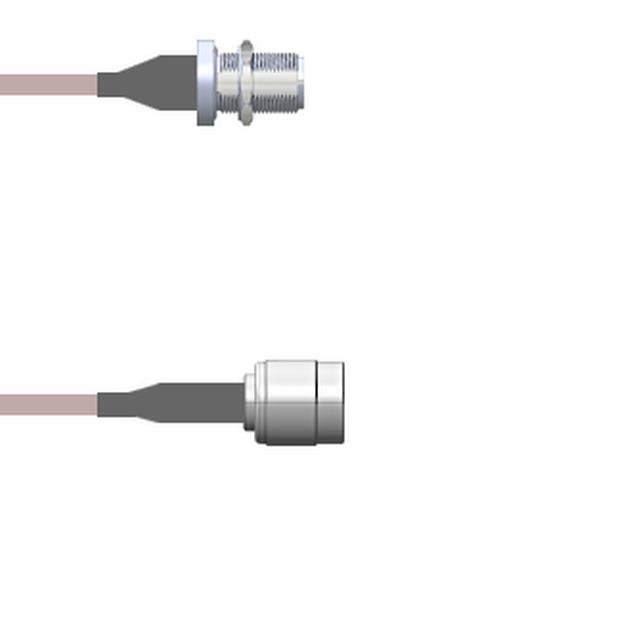

Cable Assembly Coaxial N-Type to TNC RG-316 29.53" (750.00mm)

Technical documentation and resources

No documents available
