WR9QR200T00NAIMR6B

Active

GlobTek, Inc.

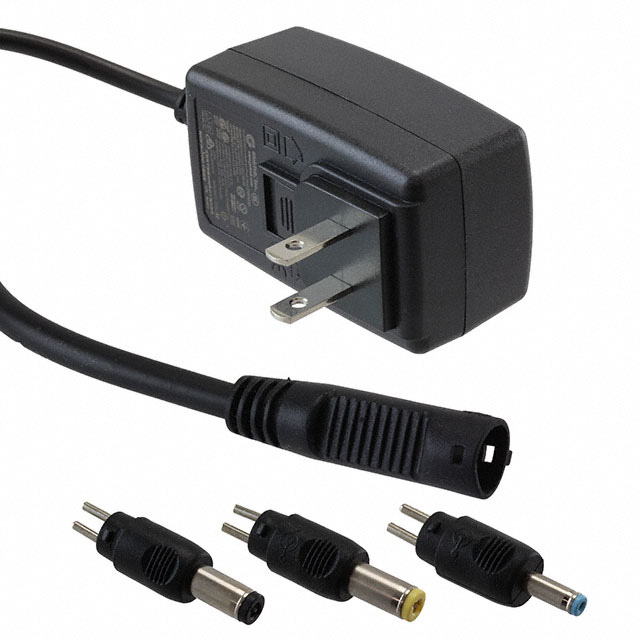

AC/DC WALL MOUNT ADAPTER 30V 6W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 30V 6W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QR200T00NAIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	ETL, UL, FCC, UKRSepro, BSI, cETLus, PSE, S-Mark, CB, CE, LPS, CCC, VCCI, EAC
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	200 mA
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	6 W
Region Utilized	International
Size / Dimension [x]	1.71 "
Size / Dimension [x]	43.5 mm
Size / Dimension [y]	74 mm
Size / Dimension [y]	2.91 "
Size / Dimension [z]	36.8 mm
Size / Dimension [z]	1.45 in
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	30 VDC

AC/DC WALL MOUNT ADAPTER 30V 6W

Part	Approval Agency	Output Connector	Region Utilized	Cord Length	Cord Length	Input Connector	Efficiency	Voltage - Output	Form	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Input Type	Current - Output (Max) [Max]	Standard Number	No Load Power Consumption [Max]	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]
GlobTek, Inc. WR9QR200T00NAIMR6B	BSI, CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, S-Mark, UKRSepro, UL, VCCI	1.3mm x 3.5mm, Barrel Plug Kit	International	1.5 m	59 in	Multi-Blade	Level VI	30 VDC	Wall Mount (Class II)	36.8 mm	74 mm	1.45 in	1.71 "	2.91 "	43.5 mm	Household Appliances, ITE (Commercial), Medical	Multi-Blade (Sold Separately)	200 mA	1310, 60335-1, 60601-1-11, 60601-1-2, 60950-1, 62368-1	75 mW	6 W	90 VAC	264 VAC	50 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30V 6 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
