Q-0I03R0001.25M

Active

Amphenol Custom Cable

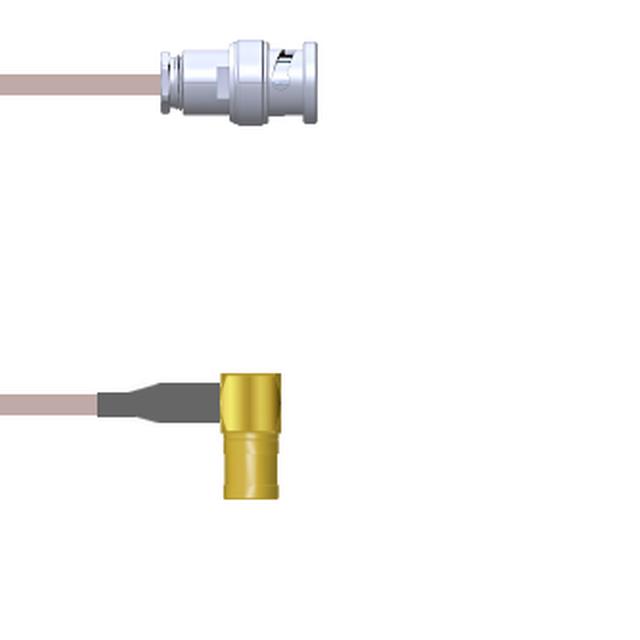

CBL ASSY BNC-SMB PLUG-PLG 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0I03R0001.25M

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB PLUG-PLG 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0I03R0001.25M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0I03R0 Series

Part	Overall Impedance	Style	Length	Length	Length	2nd Contact Gender	1st Connector Mounting Type	2nd Connector	Color	Features	Cable Type	Frequency - Max [Max]	1st Connector	1st Contact Gender	2nd Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-0I03R00012.5M	50 Ohms	BNC to SMB	8.2 '	98.4 in	2.5 m	Male	Free Hanging (In-Line)	SMB Plug Right Angle	Copper	Shielded	RG-178	4 GHz	BNC Plug	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-0I03R0001006i	50 Ohms	BNC to SMB		6 in	152.4 mm	Male	Free Hanging (In-Line)	SMB Plug Right Angle	Copper	Shielded	RG-178	4 GHz	BNC Plug	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-0I03R0001012i	50 Ohms	BNC to SMB		12 "	304.8 mm	Male	Free Hanging (In-Line)	SMB Plug Right Angle	Copper	Shielded	RG-178	4 GHz	BNC Plug	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-0I03R0001048i	50 Ohms	BNC to SMB	4 ft	48 in	1200 mm	Male	Free Hanging (In-Line)	SMB Plug Right Angle	Copper	Shielded	RG-178	4 GHz	BNC Plug	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-0I03R0001.75M	50 Ohms	BNC to SMB		29.53 "	750 mm	Male	Free Hanging (In-Line)	SMB Plug Right Angle	Copper	Shielded	RG-178	4 GHz	BNC Plug	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-0I03R0001036i	50 Ohms	BNC to SMB		36 in	91.44 cm	Male	Free Hanging (In-Line)	SMB Plug Right Angle	Copper	Shielded	RG-178	4 GHz	BNC Plug	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-0I03R00011.5M	50 Ohms	BNC to SMB	4.9 ft	59.1 in	1.5 m	Male	Free Hanging (In-Line)	SMB Plug Right Angle	Copper	Shielded	RG-178	4 GHz	BNC Plug	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-0I03R0001060i	50 Ohms	BNC to SMB	5 ft	5 '	1.5 m	Male	Free Hanging (In-Line)	SMB Plug Right Angle	Copper	Shielded	RG-178	4 GHz	BNC Plug	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-0I03R0001001M	50 Ohms	BNC to SMB	3.3 ft	39.4 in	1 m	Male	Free Hanging (In-Line)	SMB Plug Right Angle	Copper	Shielded	RG-178	4 GHz	BNC Plug	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-0I03R0001.25M	50 Ohms	BNC to SMB				Male	Free Hanging (In-Line)	SMB Plug Right Angle	Copper	Shielded	RG-178	4 GHz	BNC Plug	Male	Free Hanging (In-Line)	9.843 "	250 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 83.33
		25	$ 81.71
		50	$ 80.08
		100	$ 78.46
		250	$ 76.84

Description

General part information

Q-0I03R0 Series

Cable Assembly Coaxial BNC to SMB RG-178 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
